5. Carrying handle
5.2 Installing the carrying handle on top of the projector
Necessary tools
8 mm Allen key.
Necessary parts
• 4 adapted spacers.
• 4 hexagon socket head bolts M10 x 30.
• 4 washers.

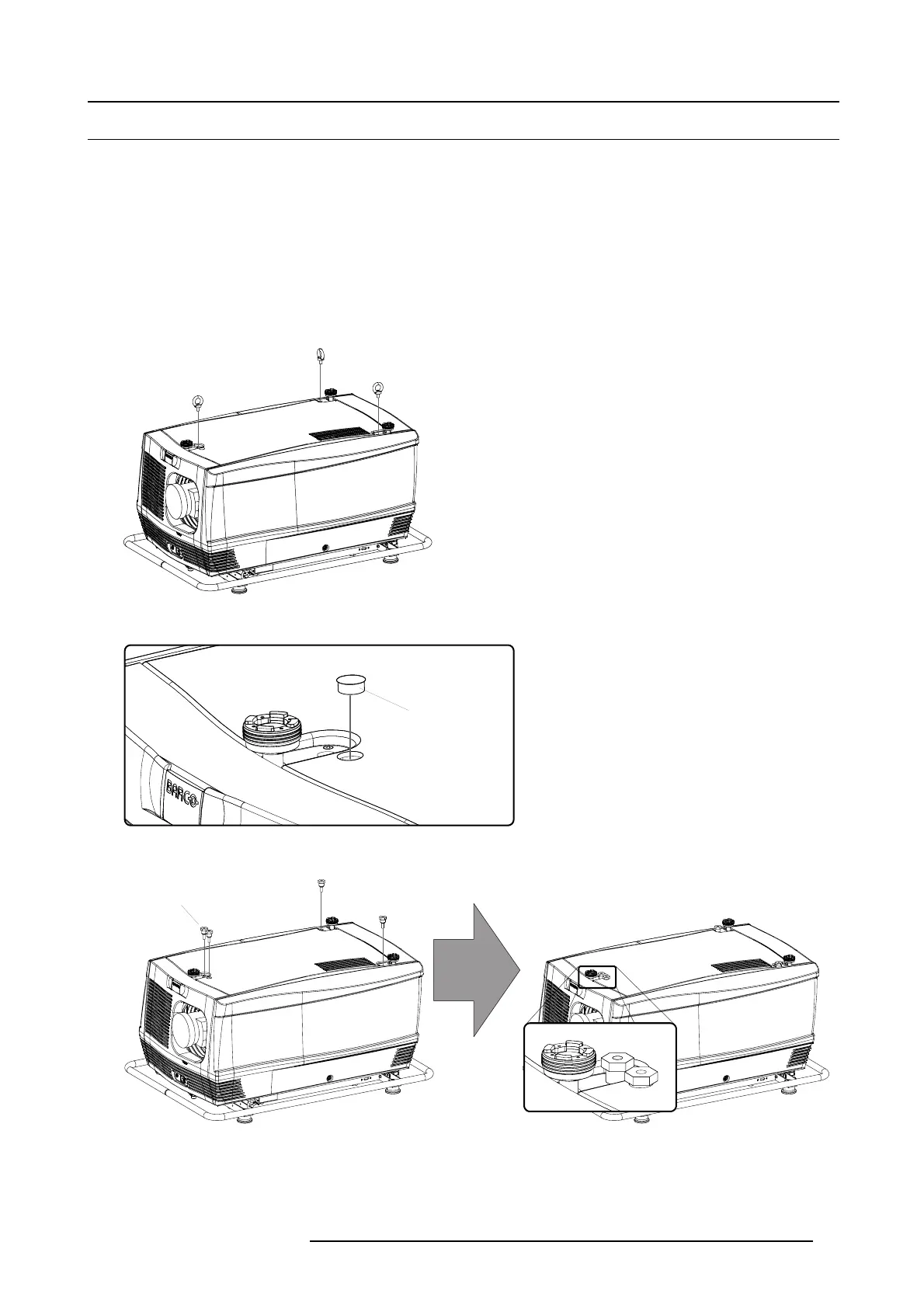

How to install the carrying handle on top of the projector?
1. Remove all three eyebolts on top of the projector.
Image 5-5
2. Remove the plastic cap (C) at the front of the projector top cover.
C
Image 5-6
3. Mount four spacers (S) on top of the projector as illustrated.
S
Image 5-7
4. Place the carrying handle upon the spacers with the adjustable feet upwards as illustrated.
5. Fasten the carrying handle using four hexagon socket head bolts M10 x 30 (F) and washers (W).
R59770072 FLM SERIES 19/03/2007
69
