5. Carrying handle
5.1 Replacement of the bottom carrying handle
Necessary tools
8 mm Allen key.
How to replace the bottom carrying handle?
1. Turn the projector upside down.
2. Remove the bottom carrying handle by releasing the four hexagon socket head screws (H).
H
W

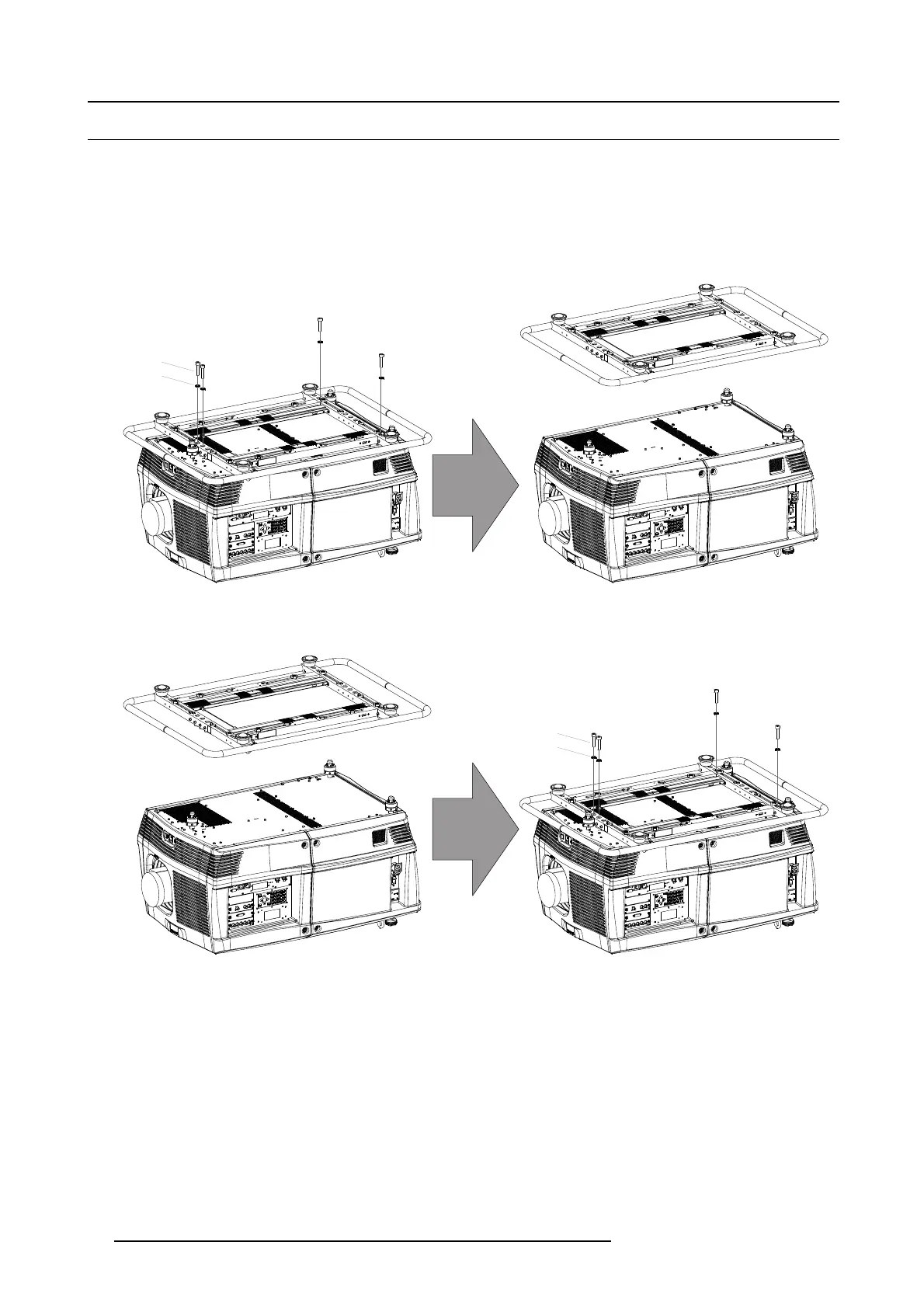

Image 5-3
3. Install the new carrying handle as illustrated. Reuse the fou
r hexagon socket head screws (H) and washers (W) which you
removed in the previous step.
H
W
Image 5-4
4. Place the projector back on its feet.
68
R59770072 FLM SERIES 19/03/2007
