13. COLD MIRROR ASSEMBLY
About this chapter
This chapter describes how to replace the cold mirror and top fan as complete assembly. It also describes the necessary adjustments
for the cold mirror.
Functionality
The cold mirror reflects the visible light and absorbs the infra red light. Due to this absorbing, a lot of heat is produced. The fan
above the cold mirror blows cold air on the heat sink so that the hot air is transported to the outside of the projector.

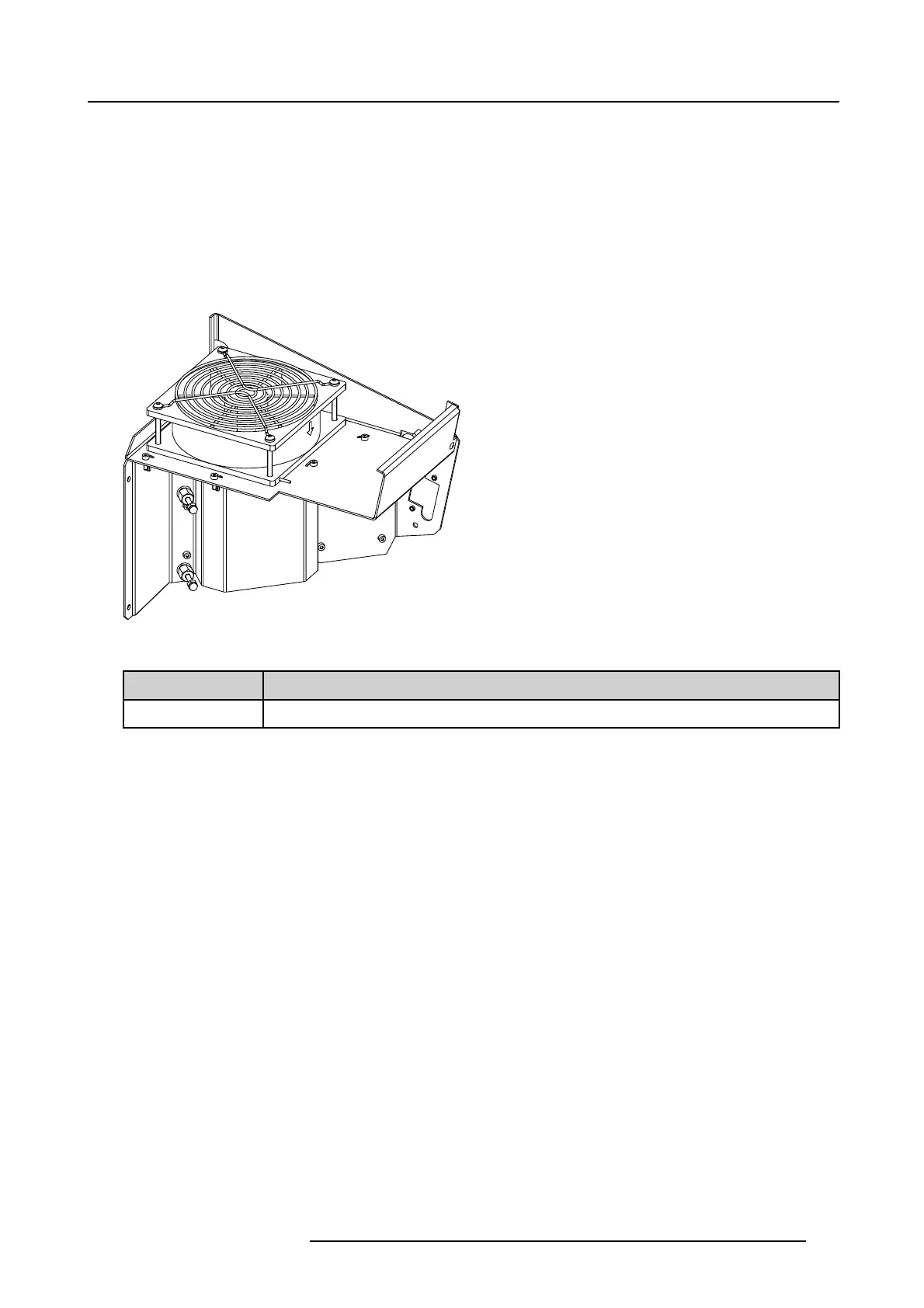

Image 13-1
Order info
Order number
Description
R848645K
Cold mirror + fan assembly
Overview
• Diagnostic
• Removal of the cold mirror assembly
• Mounting the new cold mirror + fan assembly
• Adjusting the cold mirror
