17. Heat exchanger
17.3 Assembling the new heat exchanger
How to assemble
1. Place the fan assembly on the heat exchanger and secure by fastening the four nuts (2 on each side).
A
B

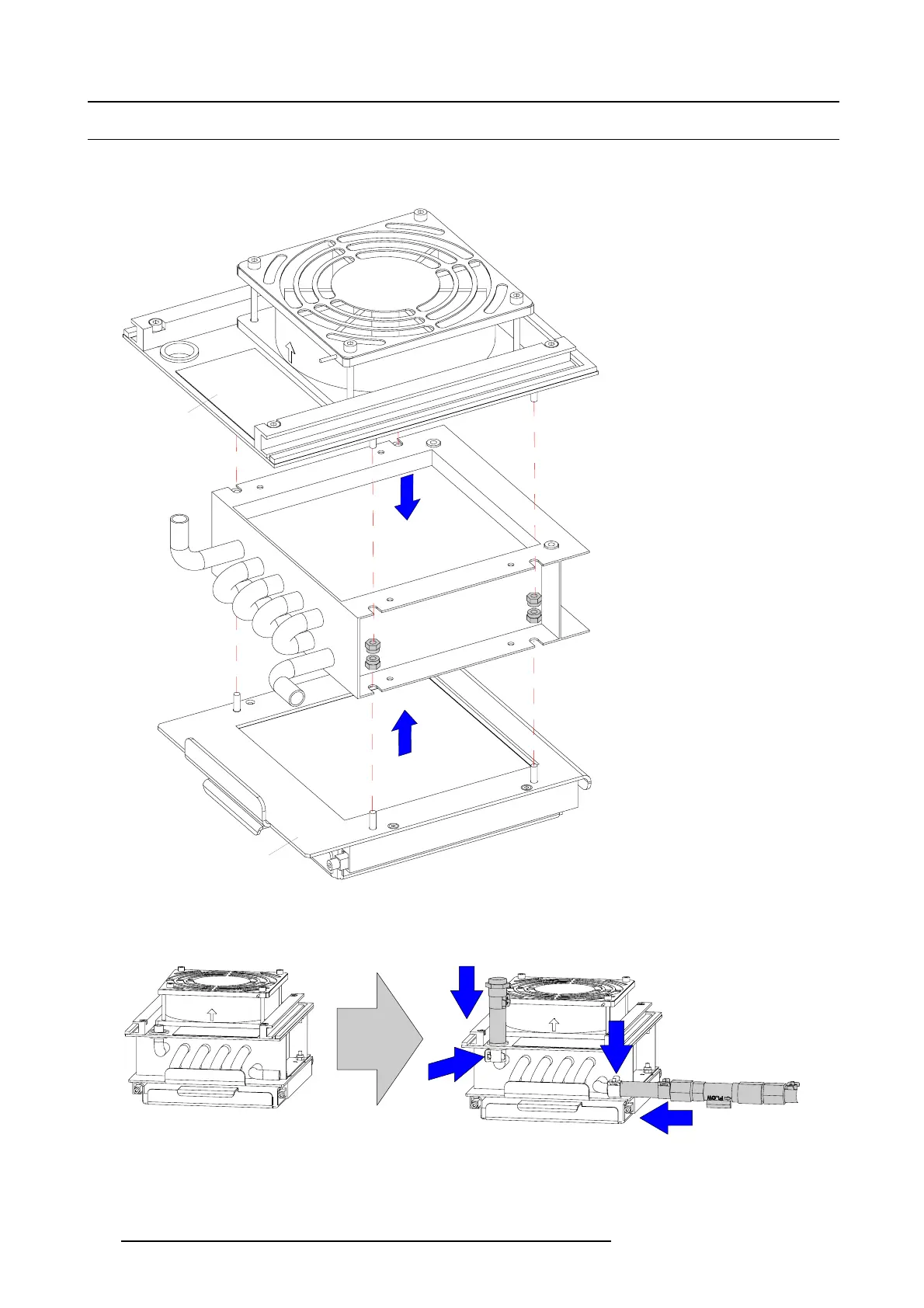

Image 17-9
Assembling heat exchanger
2. Place the heat exchanger and f
an assembly on the dust filter assembly and secure by fastening the four nuts (2 on each side).
3. Push the tube + valved fitting (1) through the hole in the plate on the input of the heat exchanger.
2
1
4
3
Image 17-10
4. Securewithaclip(
2). Push both clip tongs together and slide the clip on the hose. Release the tongs and it clamps automatically.
5. Push the tube coming from the flow switch on the output of the heat exchanger (3).
184
R59770072 FLM SERIES 19/03/2007
