18. Cooling pump
18.2.1 Removing the pump body
Before removing the pump you have to drain the cooling circuit first.
Necessary tools
• Allen key 3 mm (best with ball point)
• Phillips head screwdriver
• Cloths
How to remove the body
1. Disconnect the pump electrically.

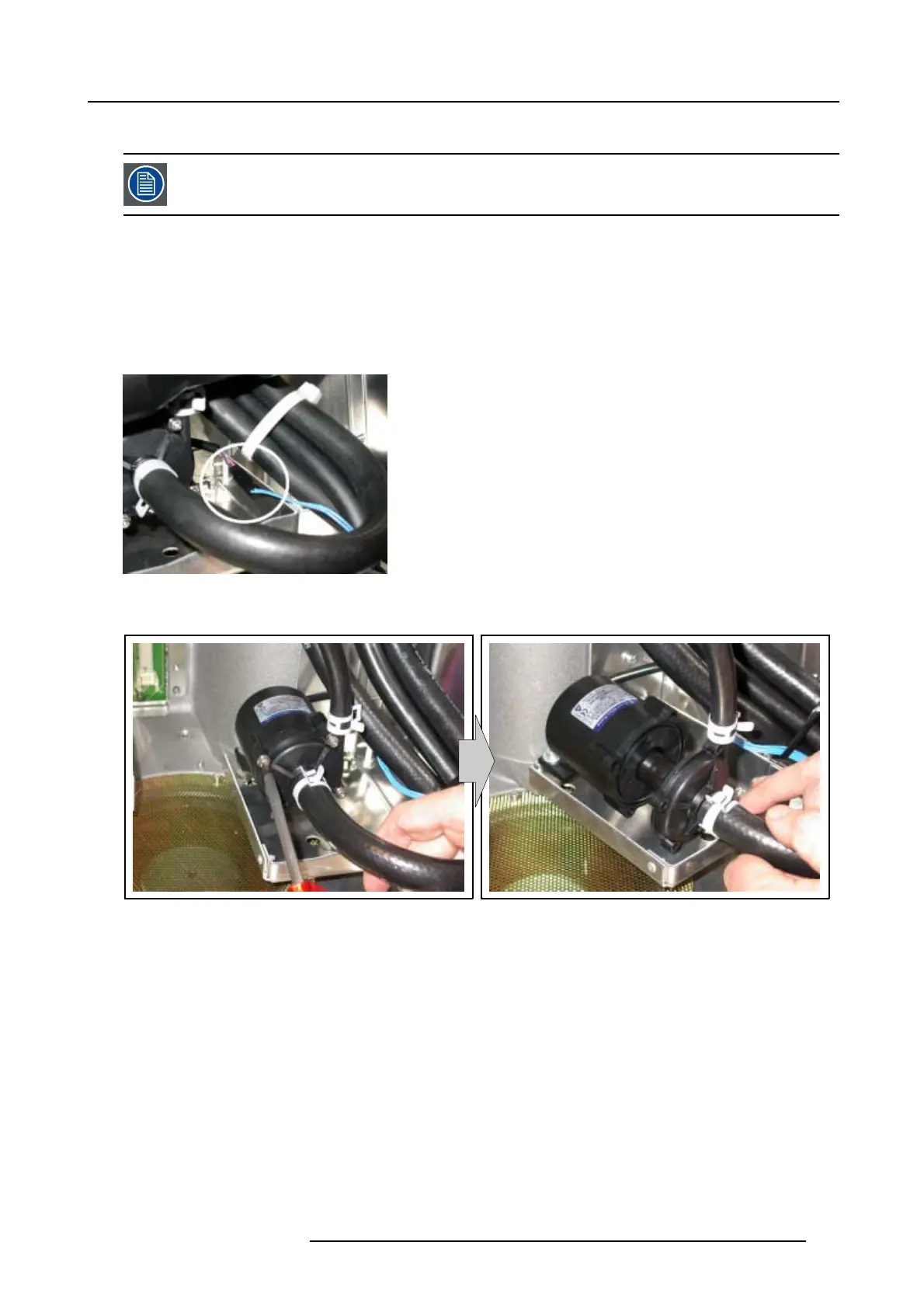

Image 18-6
Electrical disconnection
2. Remove the 4 screws on the pump body and slide the pump cover with hoses bac
kwards.
Image 18-7
Remove pump cover
3. Turn out both bolts (3) securing the pump body to the seating of the pump.
4. Take out the pump body.
R59770072 FLM SERIES 19/03/2007
195
