24. Fan replacements

24.5.2 Removing the anode fan

Necessary tools

•Allenkey3mm

•Allenkey5mm

How to remove the anode fan

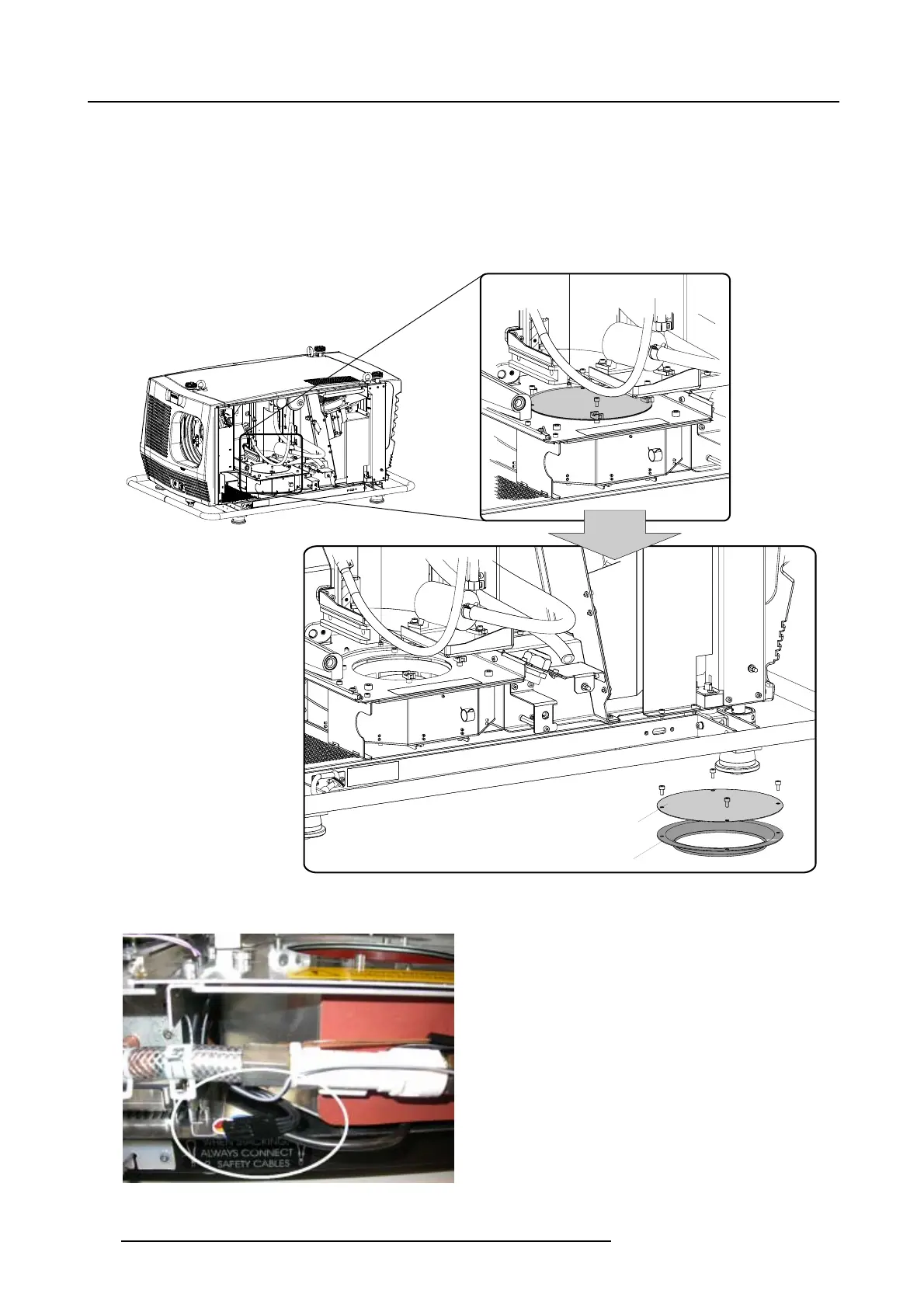

1. Turn out the 4 screws of the fan security grid and take off that grid (A) . Take out also the air channel plate B.

Image 24-43

Removing grid and channel plate

2. Pull out the fan cable and disconnect the fan.

Image 24-44

Disconnecting the fan

260 R59770072 FLM SERIES 19/03/2007
