24. Fan replacements

24.5.5 Finalizing the replacement

Necessary tools

Flat screwdriver 3 mm

What to do

1. Rotate the heat exchanger assembly back and slide it into the projector.

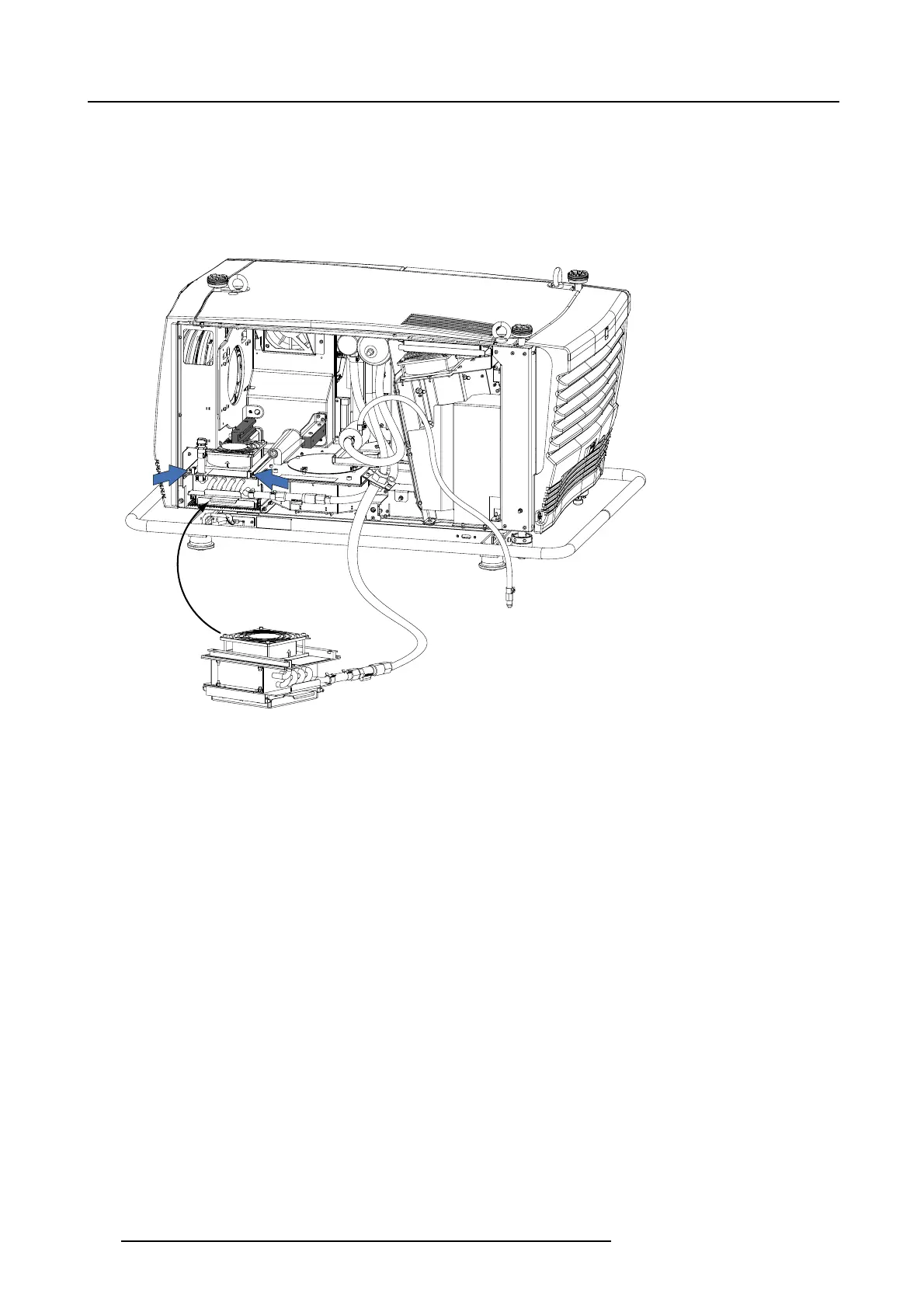

Image 24-52

2. Fasten both fixation screws.

3. Connect those cables which where disconnected

and tie up the cables where necessary.

4. Insert the light processor assembly, see "Installing the light processor", page 106.

5. Install the side cover, see "Installation of the side cover", page 81.
