6. Removal and installation of projector covers
6.6 Removal of the top cover
To remove the top cover, first all side covers must be removed.
How to remove the top cover from the projector
1. Turn out the 3 eye bolt (A).
A
A
A
B

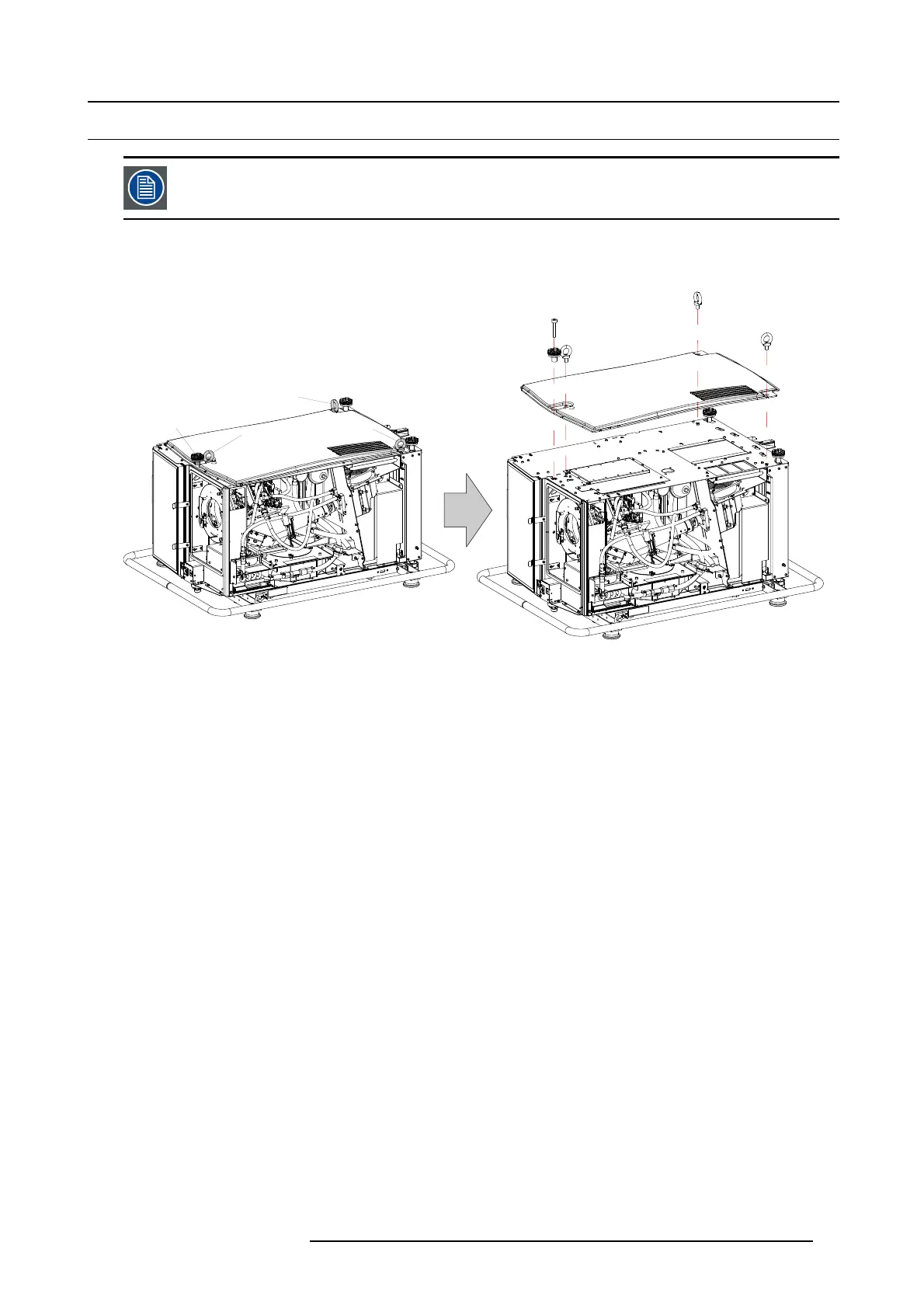

Image 6-11
Top c over remo va l
2. Remove the front interlocking adapter (B) using a 8 mm Allen key.
3. Take off the top cover.
