24. Fan replacements
24.5.1 Access to the anode fan
Remove the side cover and take out the light processor assembly.
What should be done
The heat exchanger and flow switch must be taken out of the projector without disconnecting them from the cooling circuit. Once
the heat exchanger is slide out, it can be rotated so that the way is free to take out the anode fan.
Necessary tools
•Allenkey3mm
• Flat screwdriver 3 mm
How to take out

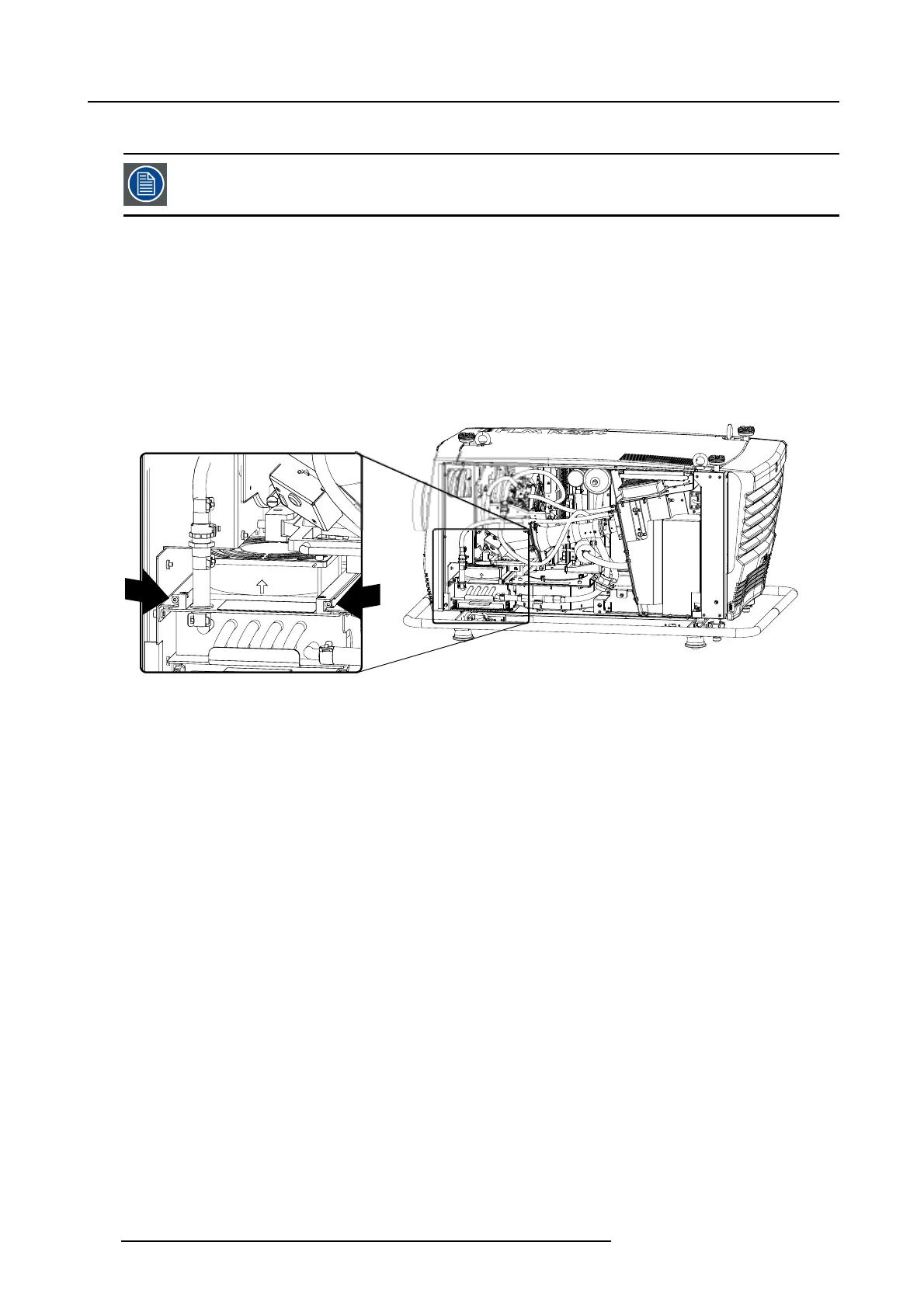

1. Loosen both indicated screws.
Image 24-41
Removing heat exchanger
2. Cut the necessary cable ties so that the cables become free.
3. Pull out the heat exchanger assembly.
258
R59770072 FLM SERIES 19/03/2007
