9. Input & communication unit
9.1 Removal of the input & communication unit
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7 mm flat screw driver.
How to remove the input & communication unit from the projector ?
1. Ensure that no cables are connected to one of the ports of the input & communication unit.
2. Remove the input cover, see "Removal of the input cover", page 75.
3. Release the four captive screws in the corners of the input and communication unit as illustrated.

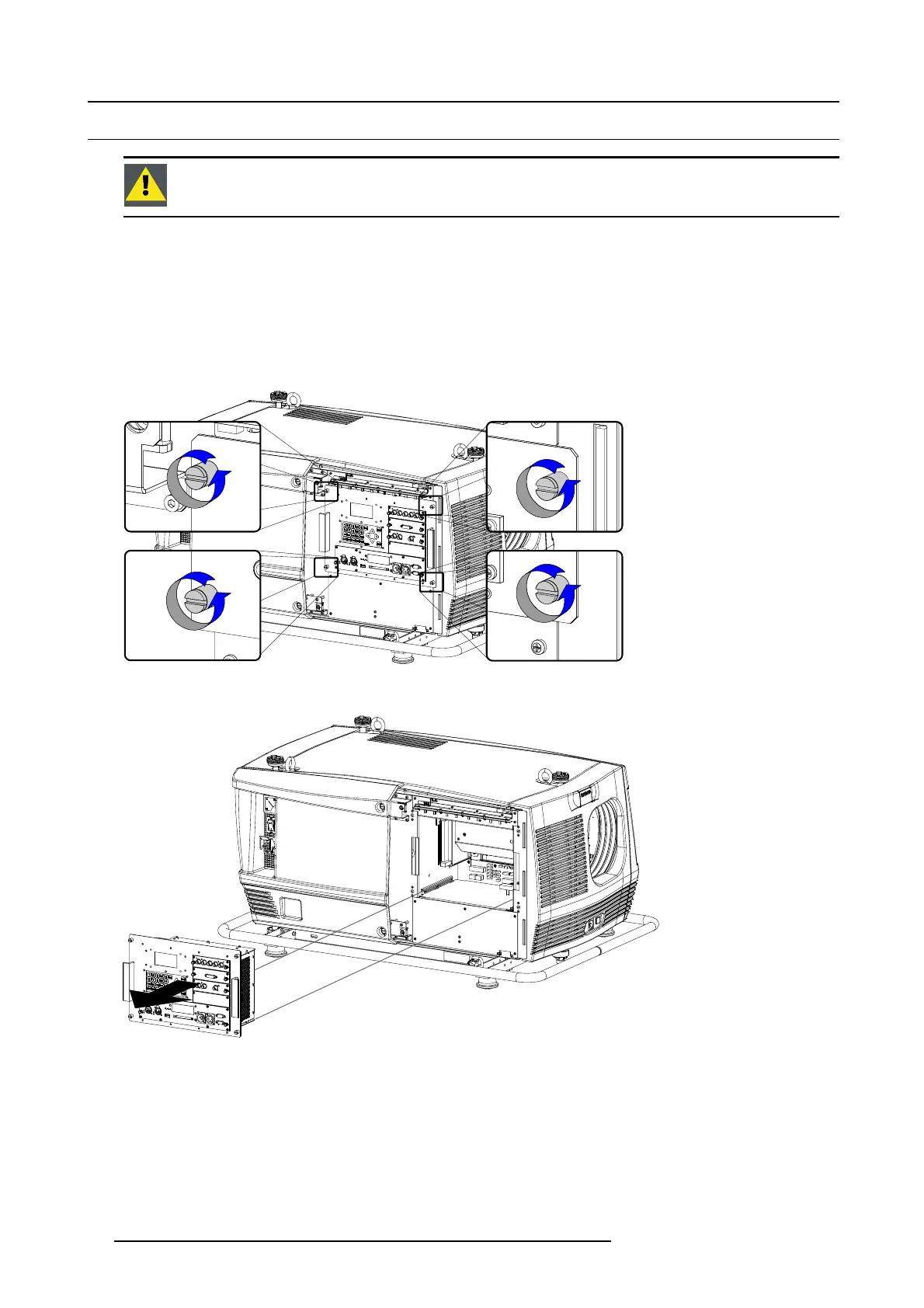

Image 9-2
4. Pull the input & communication unit out of its compartment, using the side handles provided.
Image 9-3
96 R59770072 FLM SERIES 19/03/2007
