24. Fan replacements
24.7.2 Replacing the left fan
Remove first the lens and the front cover.
Necessary tools
Allen key 3 mm
How to remove the left fan
1. Remove the HEPA dust filter on the front side by pulling the two spring clamps away from the filter and then moving the filter
forwards.
2
1

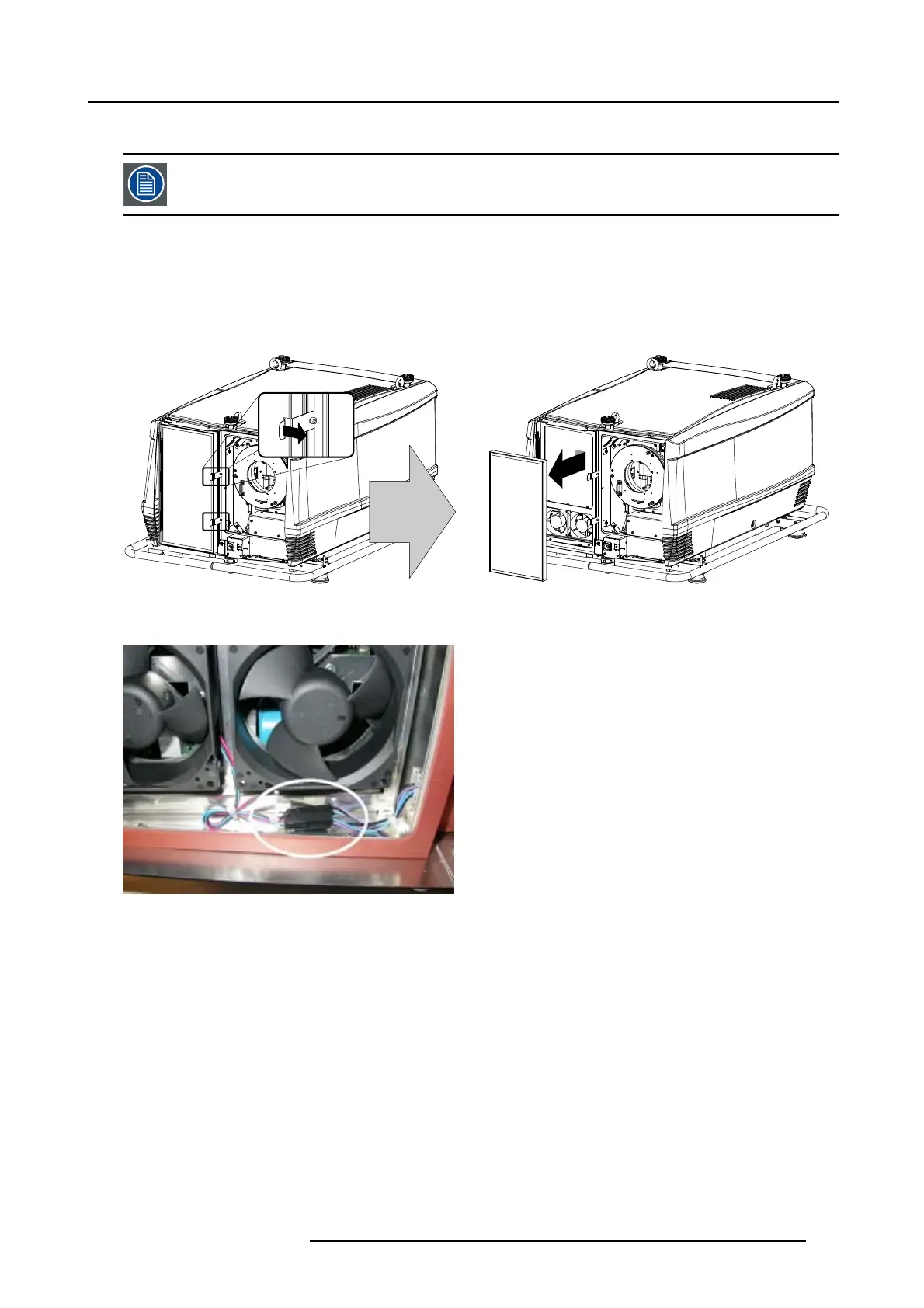

Image 24-60
Remove dust filter
2. Disconnect the fan. It can be necessary to cut the cable tie.
Image 24-61
Fan connection
3. To access to the fan screws, remove the met
al frame before the fans. Turn out the 6 indicated screws. Both clips for the filter
will be remove at the same time.
R59770072 FLM SERIES 19/03/2007
