24. Fan replacements

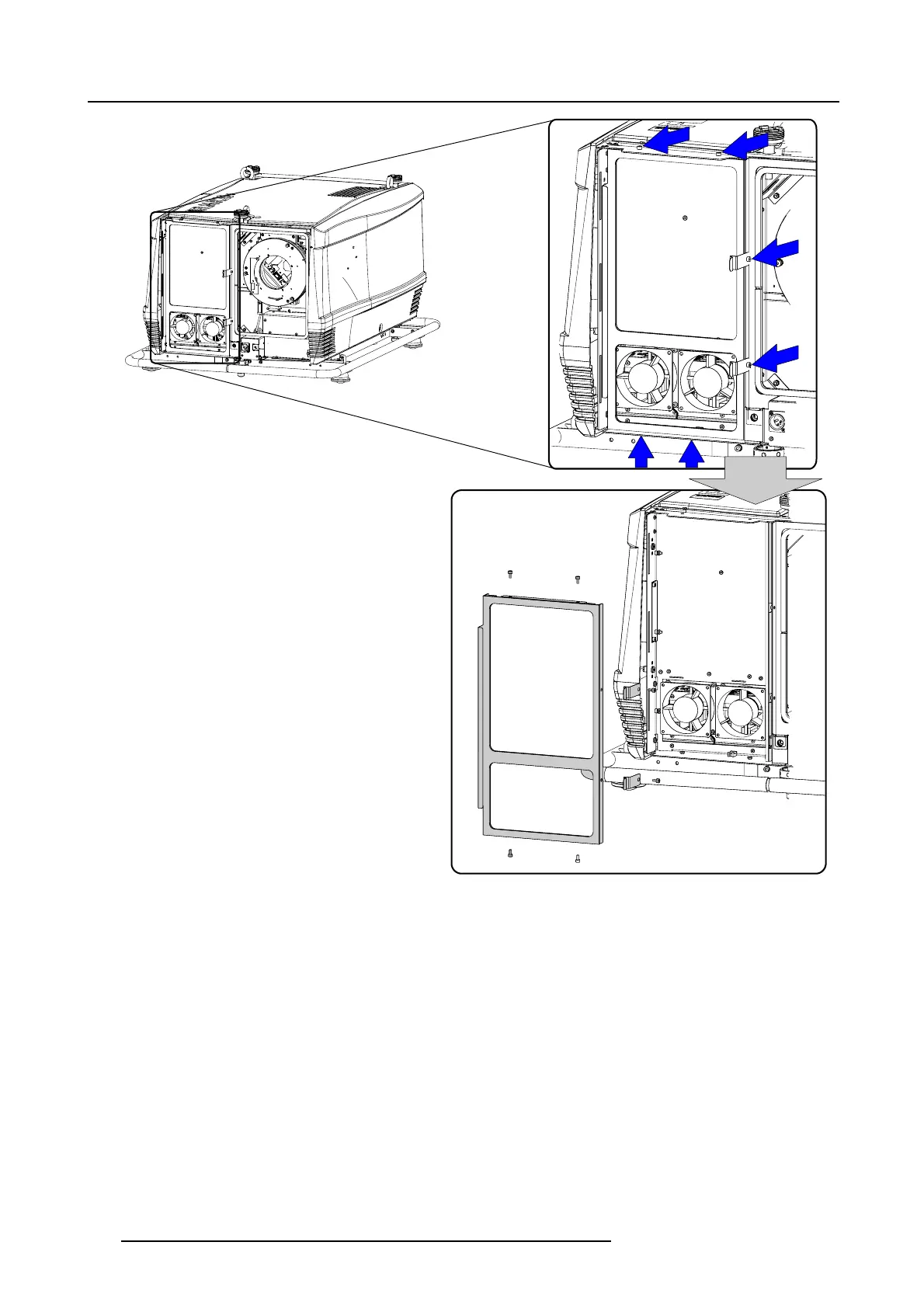

Image 24-62
Remove frame
4. Turn out the 4 screws of the fan and take the fan out.
5. Insert a new fan with the arrow indication pointing towards the SMPS.
6. Secure with the 4 screws.
7. Put the frame back on its plac
e and secure with the 6 screws. Do not forget the insert the clips for the filter at the right side before
turninginthescrews.
8. Reestablish the connection.
9. Insert the HEPA filter by pulling the two spring clamps away and move the filter into position.
10.Reinstall the front cover of the projector, see "Installation of the front cover", page 80 and insert the lens.
274
R59770072 FLM SERIES 19/03/2007
