17. Heat exchanger

17.4 Mounting the heat exchanger assembly into the projector

Necessary tools

•2,5mmAllenkey.

• 7 mm wrench.

• Universal plier.

How to mount heat exchanger assembly into the projector?

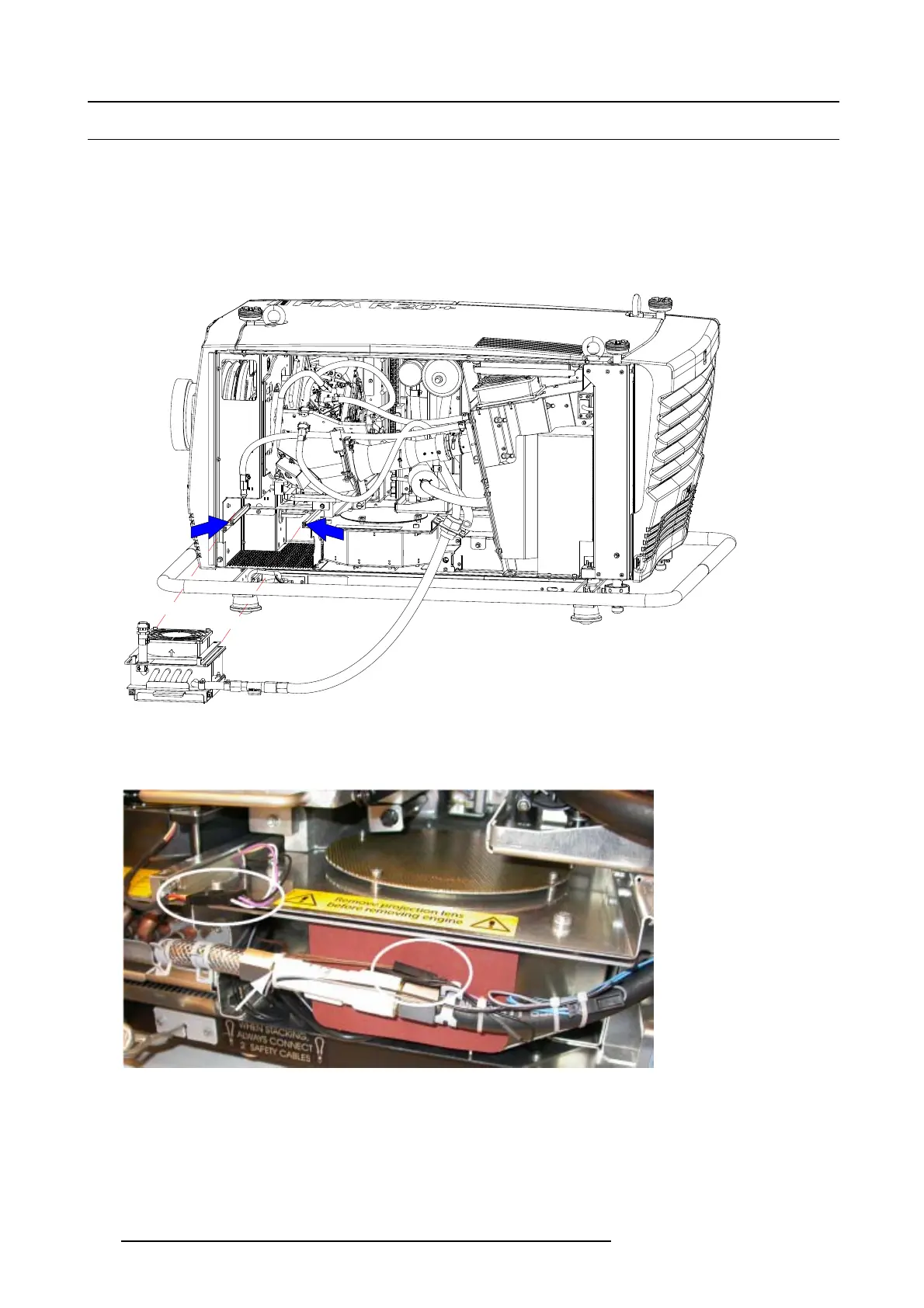

1. Slide the heat exchanger assembly into the projector. Make sure the guides match the grooves of the assembly.

Image 17-11

2. Fasten both screws.

3. Reinstall both electrical connections. Place cabl

e ties where necessary.

Image 17-12

Electrical connection

186 R59770072 FLM SERIES 19/03/2007
