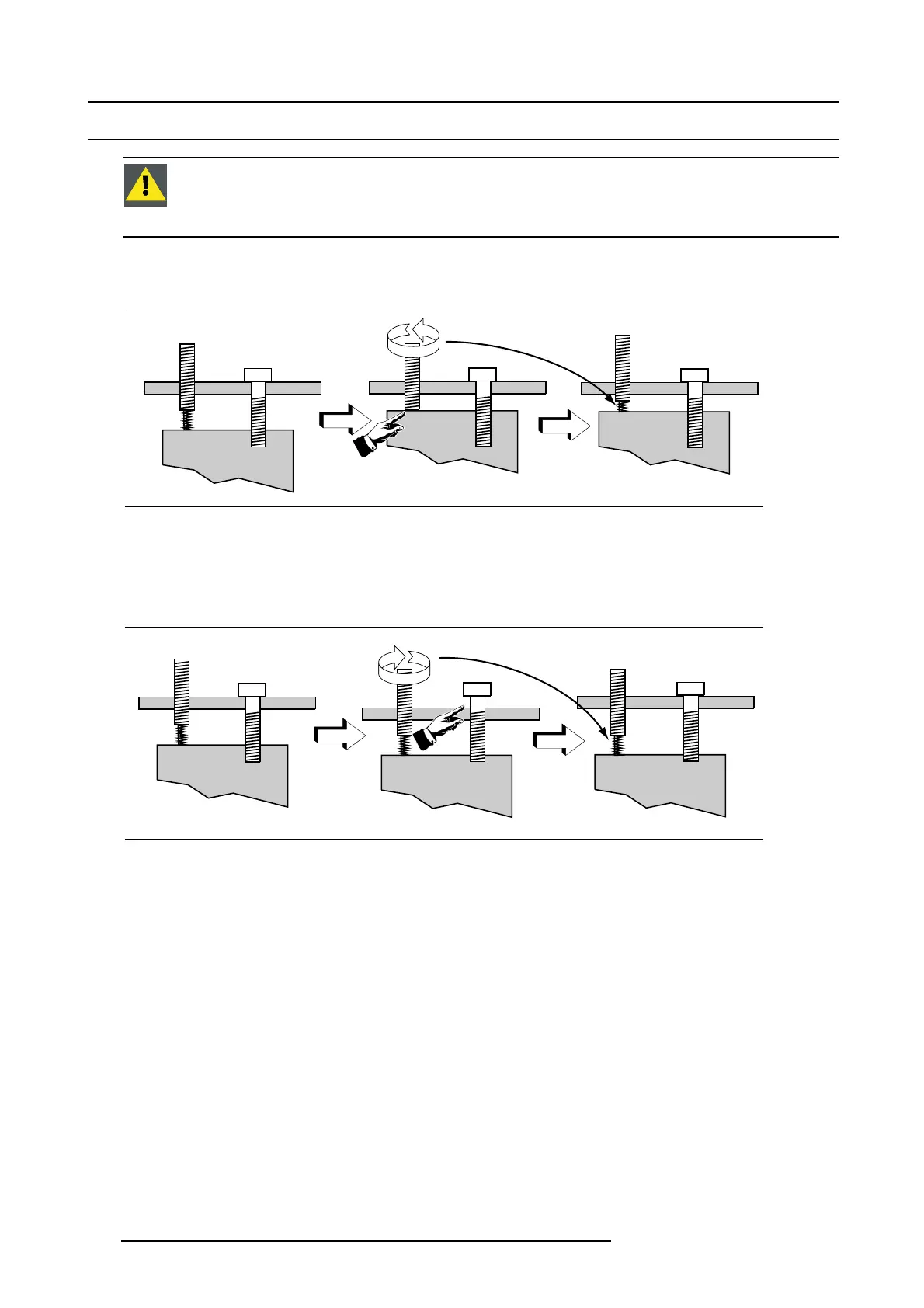

29. Convergence adjustment
29.3 Readjustment of the plungers
CAUTION: Do NOT adjust the plungers on the DMD assembly, if small convergence drifts have to be corrected
only.
For extreme convergence adjustments, possible in case after the replacement of a DMD assembly, a readjust-
ment of the plungers can be necessary.
Convergence screw is end of course
1. Turn the plunger (A) a few turns counterclockwise.
A
B
Image 29-7
Readjustment plunger
2. Continue with the fine convergence adjustment
Convergence screw sense no resistance
1. Turn the plunger clockwise until resistance is sensed again.
A
B
Image 29-8
Readjustment plunger
2. Continue with the fine convergence adjustment
318
R59770072 FLM SERIES 19/03/2007
