10. Light processor + light pipe assembly
10.2 Removal of the light processor
CAUTION: Remove the light processor of the projector only in a clean and dust free area. Never remove the
side cover in an area which is subject to airborne contaminants such as that produced by smoke machines
or similar.
To remove the side cover, see "Removal of the side cover", page 73.
CAUTION: Remove the lens before removing the light processor !
Necessary tools
• 5 mm flat screw driver.
• 10 mm nut driver.
How to remove the light processor of the projector ?
1. Remove the lens.

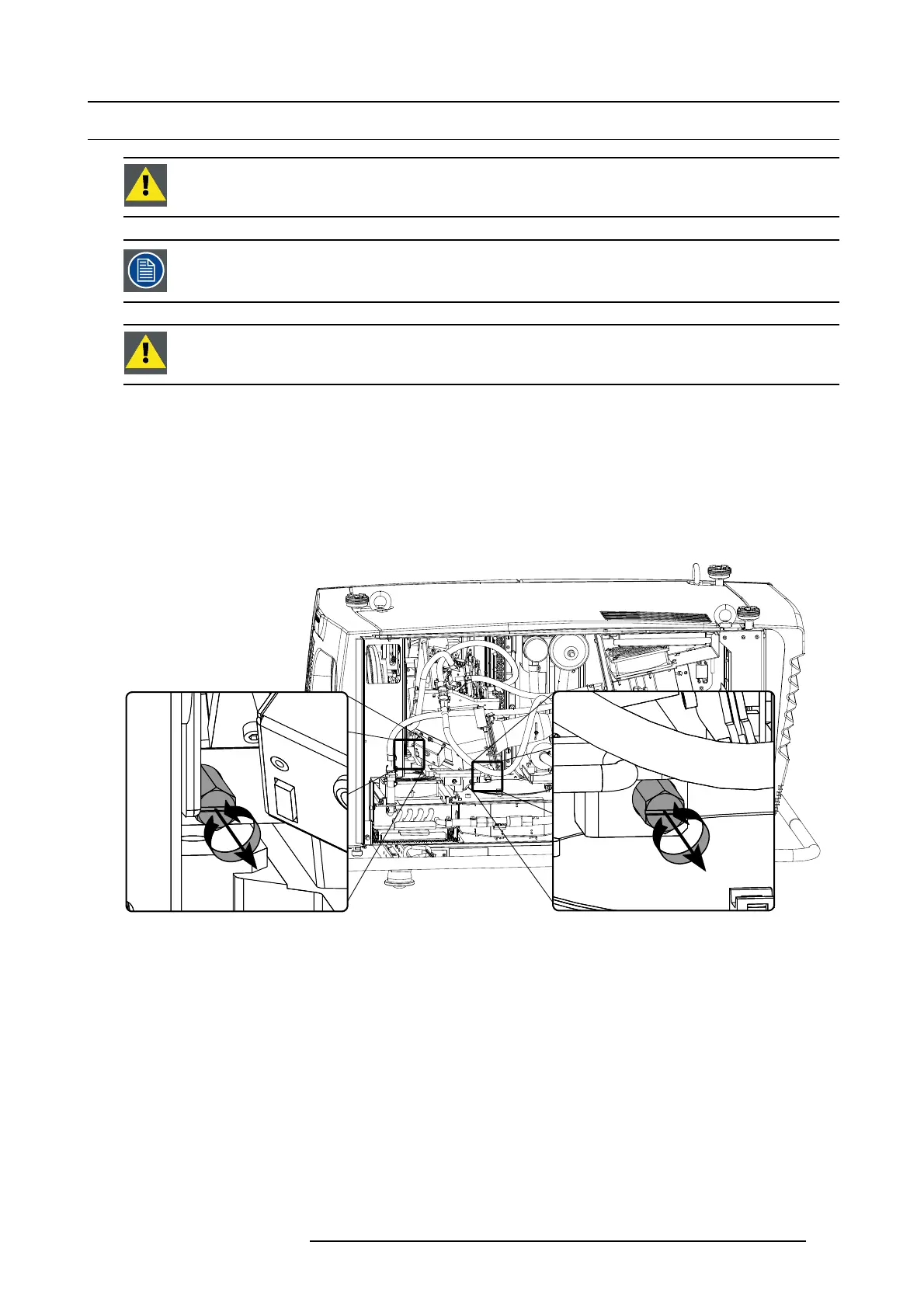

2. Release the two captive screws at the bottom of the light processor as illustrated. Use a 10 mm nut driver or a 5 mm flat screw
driver.
Image 10-2
3. Release the two captive screws at the right side of
the light processor as illustrated. Use a 5 mm flat screw driver.
Note: The Formatting Interface Board (FIB) is attached to the light processor and has to be removed from the projector together
with the light processor.
R59770072 FLM SERIES 19/03/2007
103
