24. Fan replacements

24.4.1 Removal of the fan assembly

Remove the lamp cover and take out the lamp house.

Necessary tools

•Allenkey3mm

• Flat screws driver 7 mm

• Nut driver 7 mm

How to remove the fan

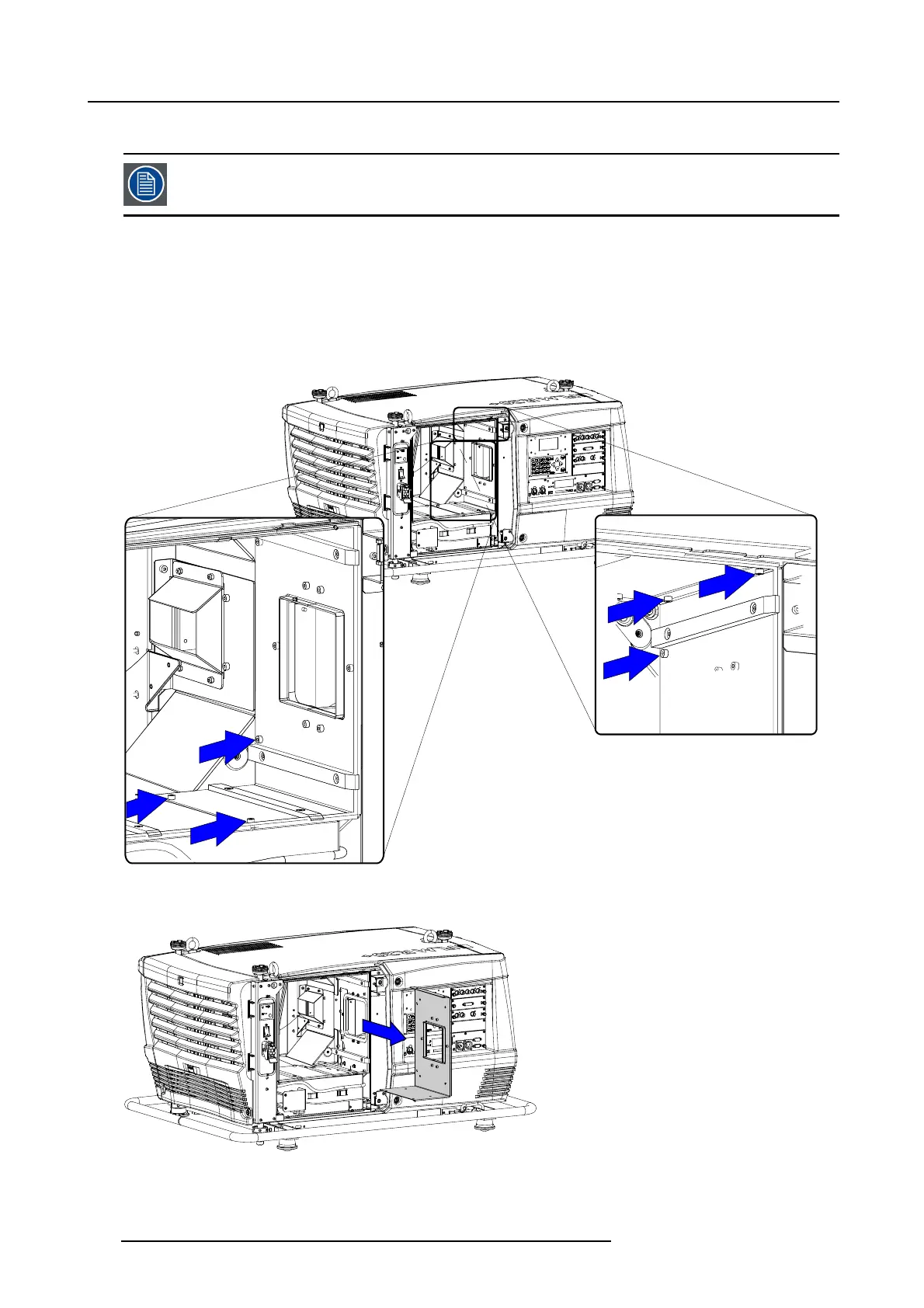

1. Turn out the 5 indicated screws with an Allen key 3 mm.

Image 24-26

Partial lamp house removal

2. Slide out the side panel of the lamp cabinet.

Image 24-27

3. Pull out the cable with connector from behind the plate and disconnect the fan.

250

R59770072 FLM SERIES 19/03/2007
