6. Removal and installation of projector covers
6.3 Removal of the lamp cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7 mm flat screw driver.
How to remove the lamp cover of the projector ?
1. Release the two captive screws at the top and bottom right side of the lamp cover, using a flat screw driver.

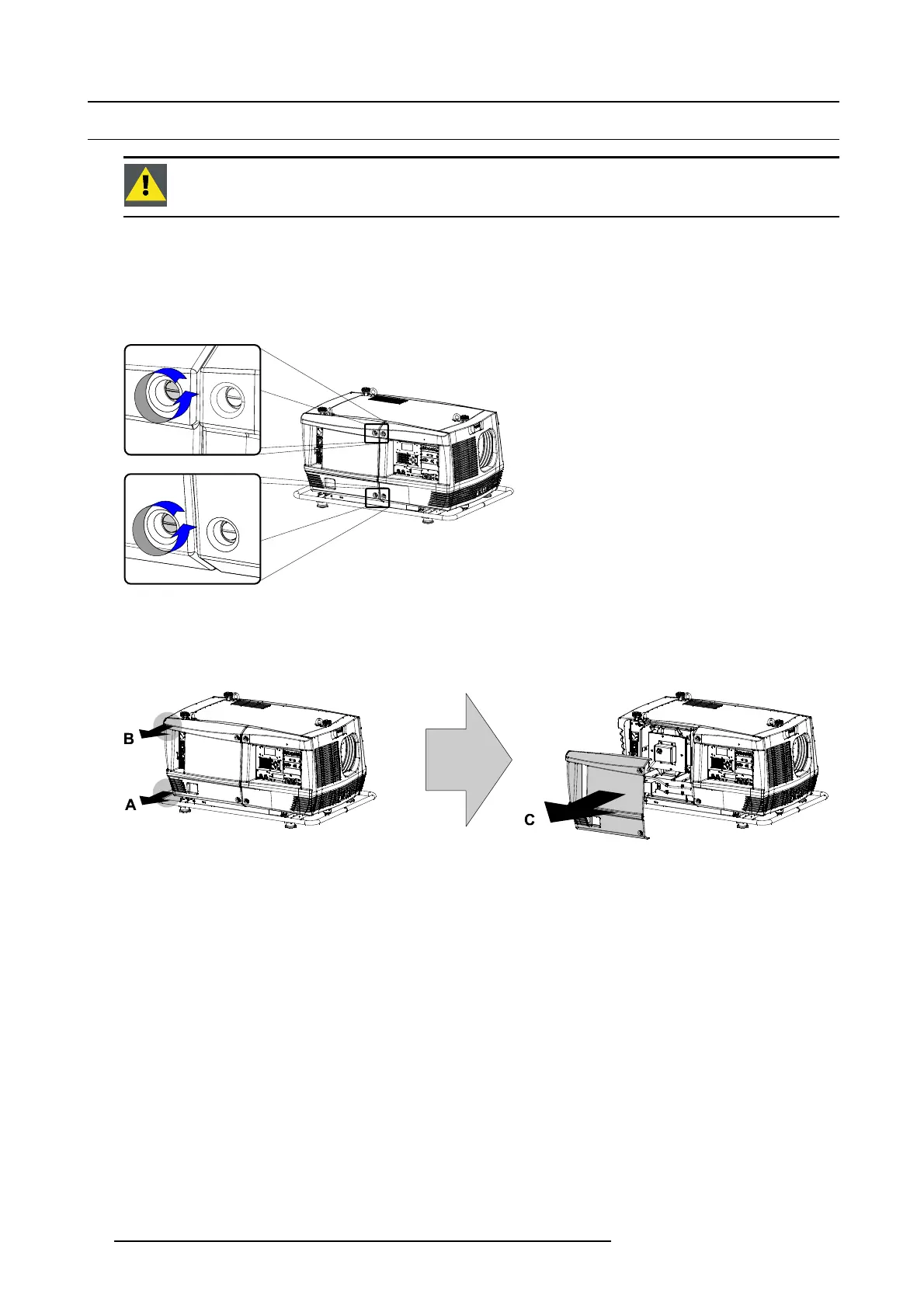

Image 6-5
2. Remove the lamp cover from the projector doing the following:
a) gently pull out the left bottom corner (A) of the lamp cover,
b) then gently pull out the left top corner (B) of the lamp cover,
c) then move the lamp cover away from the projector (C).
Image 6-6
74 R59770072 FLM SERIES 19/03/2007
