24. Fan replacements
24.1.1 Building out the heat exchanger assembly
Necessary tools
Screwdriver 7 mm

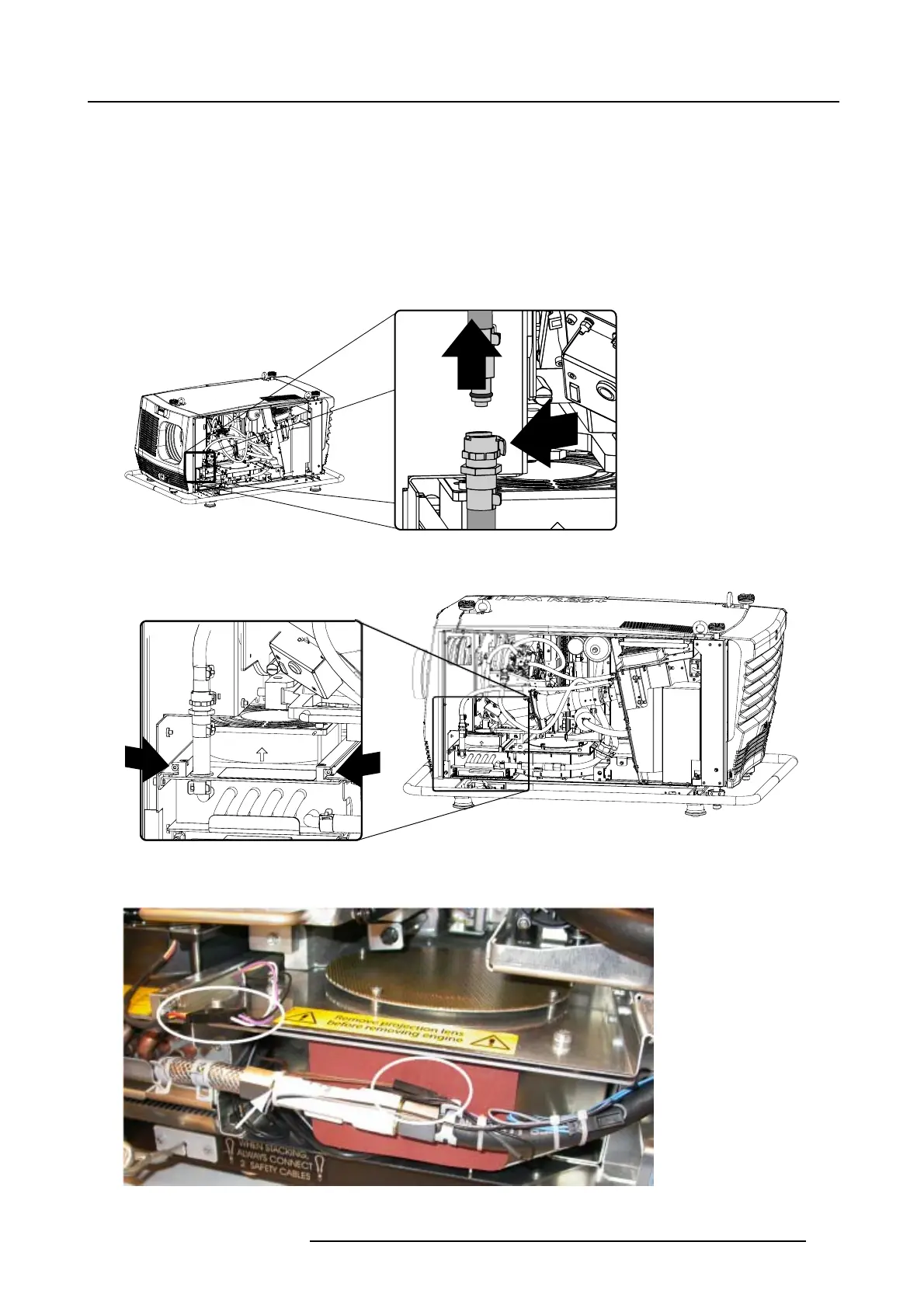

How to build out
1. Remove the side cover, see "Removal of the side cover", page 73.
2. Uncouple the cooling circuit from the heat exchanger. Press on the connector tab (1) and pull out the male valved fitting (2).
Tip: Sometimes a little cooling liquid will be spilled. Wrap a small cloth around the valved fitting while uncoupling to absorb
the spilled cooling liquid.
2
1
Image 24-5
Interrupt cooling circuit
3. Loosen both indicated screws.
Image 24-6
4. Cut the necessary wire tire(s).
Note: Otherwise, it is not possible to take out the heat exchange assembly.
Image 24-7
R59770072 FLM SERIES 19/03/2007 235
