29. Convergence adjustment
29.1 Action of the convergence controls

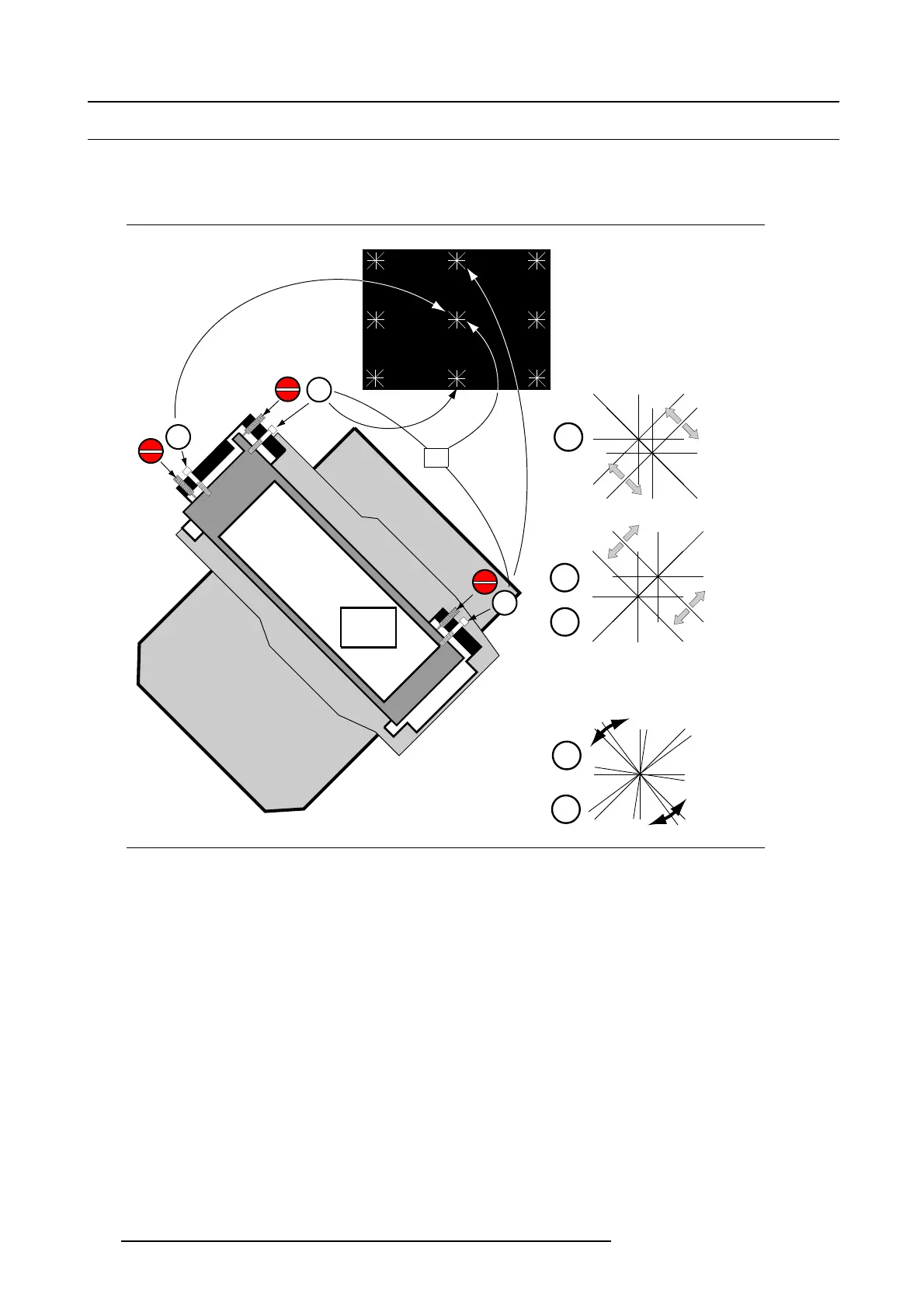

Influence of the controls on the convergences
The DMD assemblies are provided with 3 adjustable screws. The assembly itself is kept in place by a plunger near the adjustable
screw. These plungers may not be re-adjusted (indicated in the drawing with the prohibition sign).
1
2
3
2
3
1
+
3
1
or
DMD
+
Image 29-1
Influence of the controls on the convergences
Adjusting the control(s):
(2): Move the respective convergence pattern up or downwards 45° diagonally (Top-Left/Bottom-Right).
(1) & (2) simultaneously: Mov
e the respective convergence pattern up or downwards -45° diagonally (Top-Right/Bottom-Left).
(1) or (3) separately: rotate the convergence pattern respectively +X° or -X°.
314
R59770072 FLM SERIES 19/03/2007
