24. Fan replacements

24.2.1 Removal of the cold mirror fan

Remove all covers of the projector before starting the procedure.

Necessary tools

•Allenkey3mm

•Allenkey2.5mm

• Allen key with ball head 2.5 mm

How to remove the fan

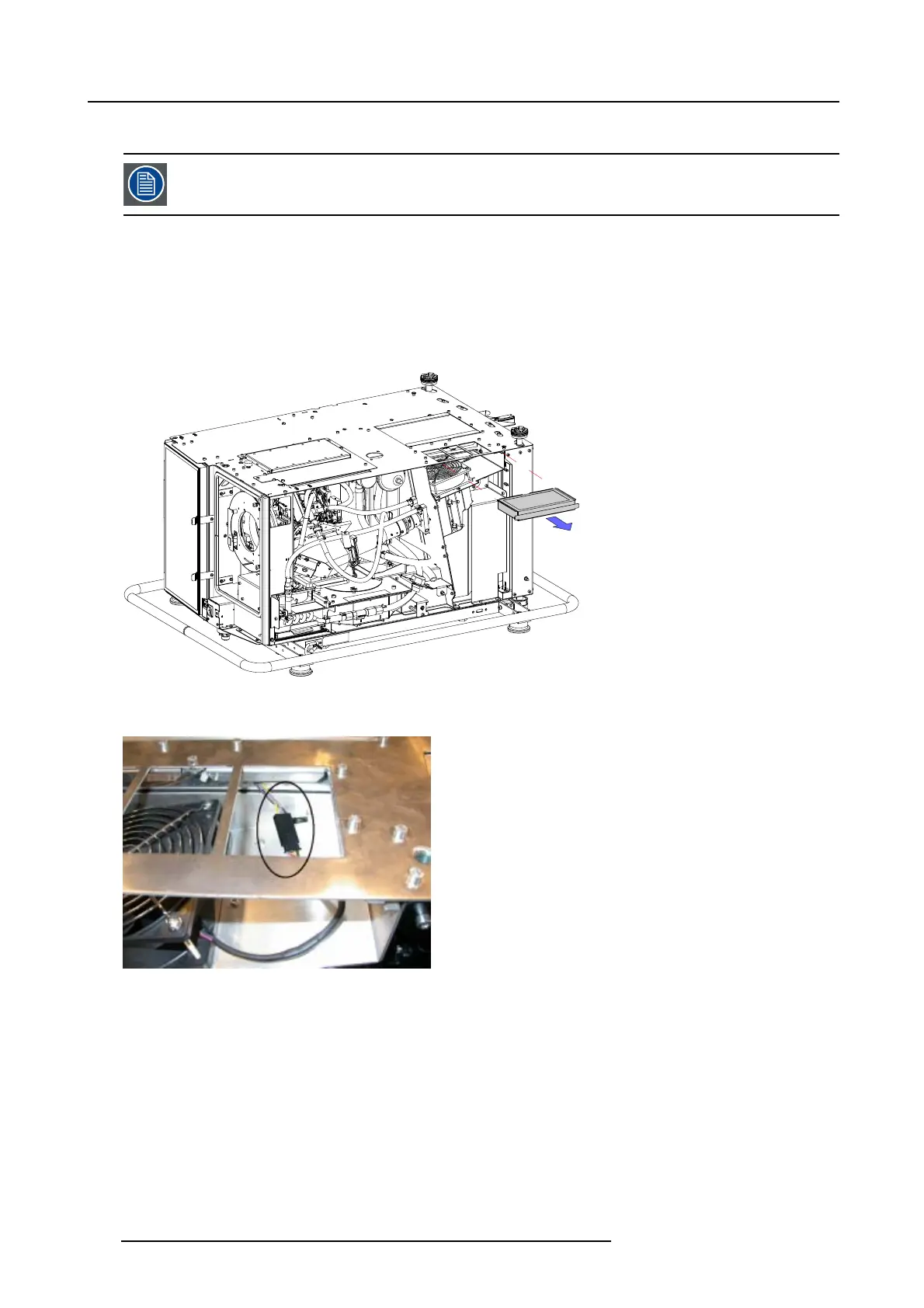

1. Slide out the dust filter.

Image 24-13

Remove dust filter

2. Disconnect the fan.

Image 24-14

Connector fan cold mirror

3. Remove the 4 screws with a ball end Allen k

ey.

240

R59770072 FLM SERIES 19/03/2007

Default Chapter3
