6. Removal and installation of projector covers
6.12 Installation of the input cover
Necessary tools
7 mm flat screw driver.
How to install the input cover of the projector ?
1. Install the input cover of the projector doing the following:
a) Bring the input cover towards its final position (A),
b) then gently push the locking stud at the right top corner (B) into its receiver,
c) then gently push the locking stud at the right bottom corner (C) into its receiver.

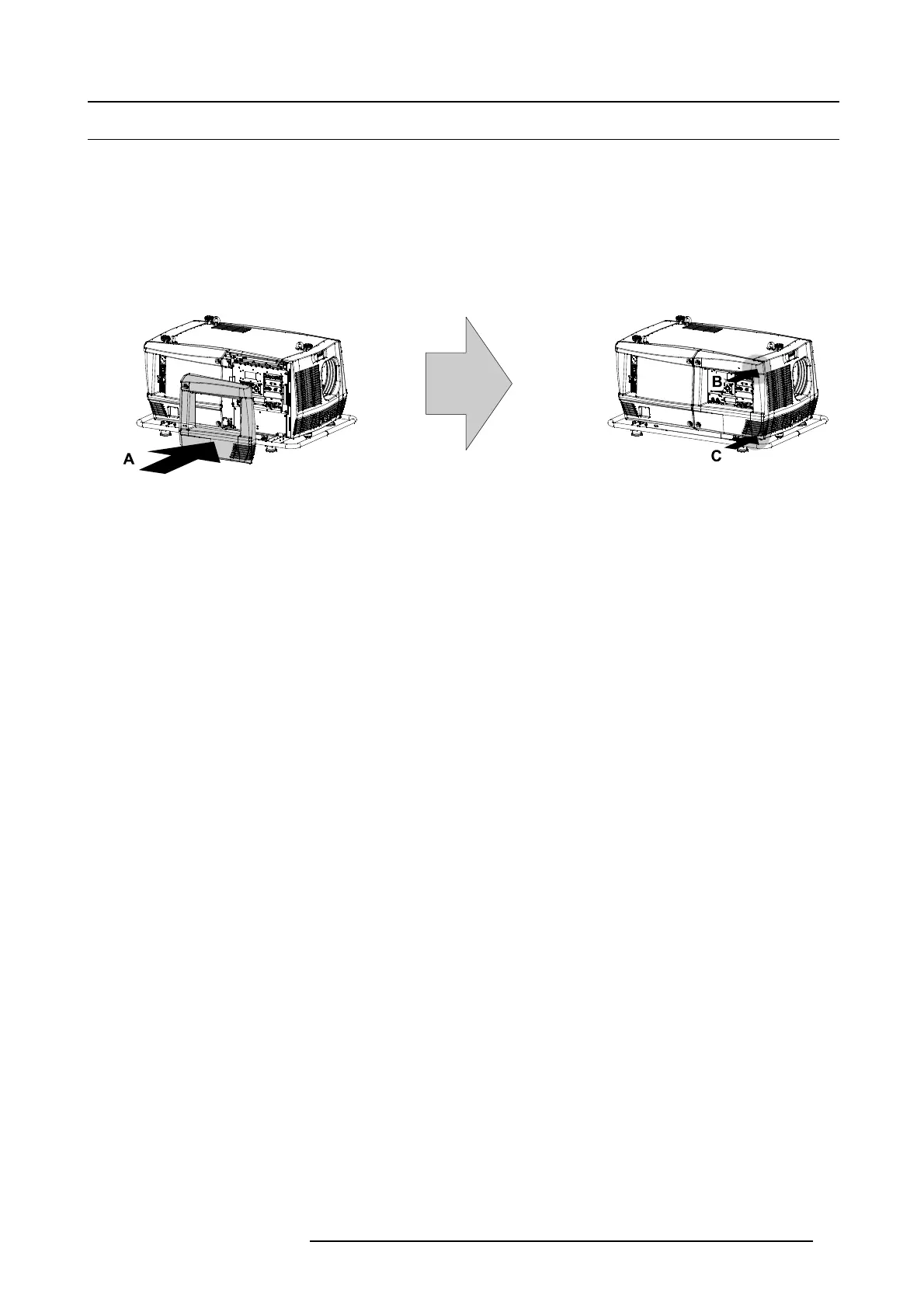

Image 6-22
2. Secure the input cover by locking the two captive screws at the left side of the input cover.
R59770072 FLM SERIES 19/03/2007
