13. Cold mirror assembly

13.2 Removal of the cold mirror assembly

WARNING: This procedure may only be performed by qualified technical service personnel.

Necessary tools

•Allenkey3mm

• Flat screwdriver 7 mm

How to remove the cold mirror assembly?

1. Remove the lamp door and the opposite side cover.

2. Remove the lamp house.

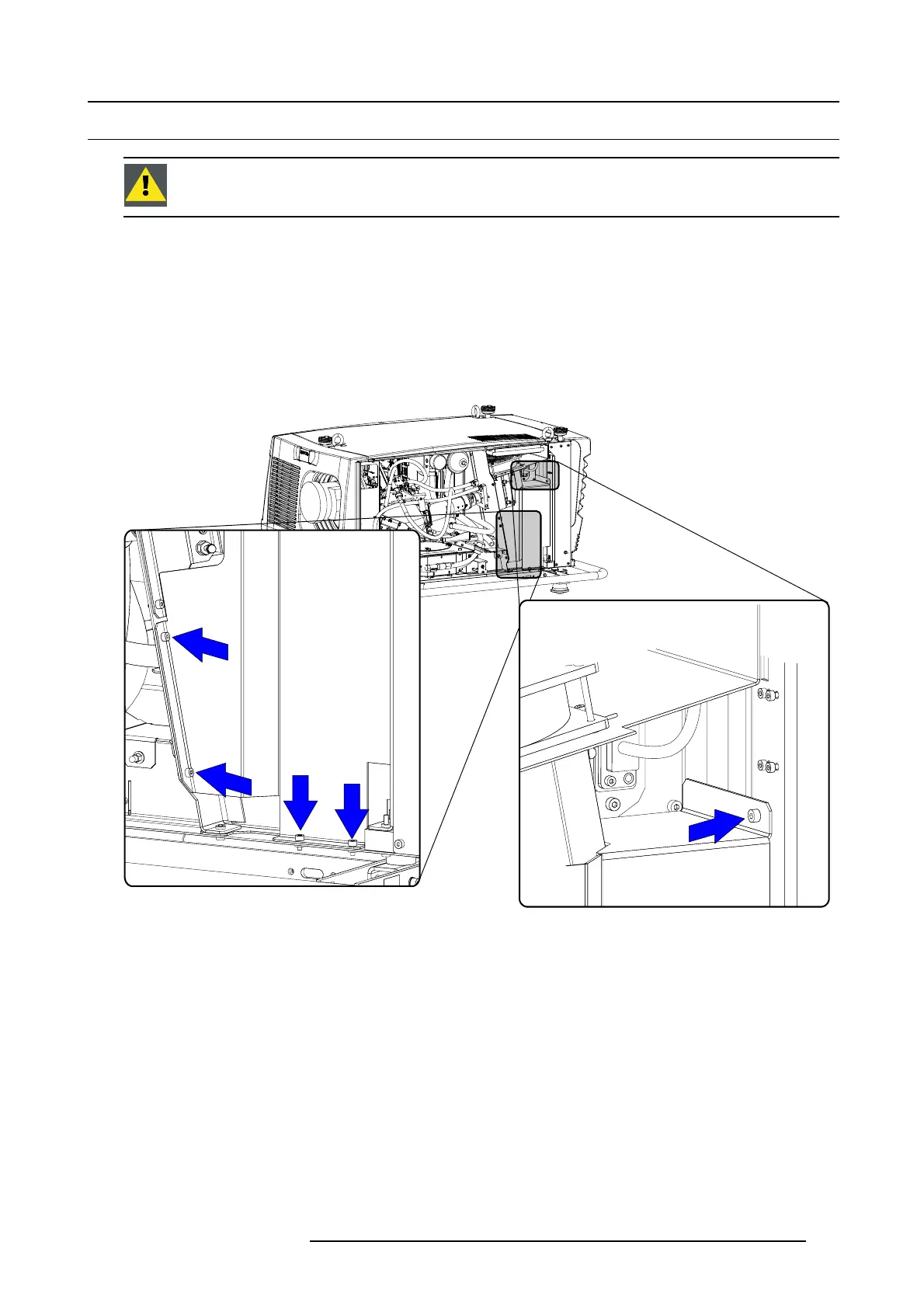

3. At the opposite side of the lamp, turn out the 5 indicated screws of metal cover plate (one top right, 2 at the botto

mand2left).

Image 13-2

Cover plate

4. Take out the plate.

R59770072 FLM SERIES 19/03/2007
