26. Power input
26.2.1 Removing the mains filter
Before starting with the removal procedure, follow first the general access procedures as given in "Power
input", page 287.
Necessary tools
Nutdriver10mmorwrench10mm
How to remove
1. Remove both nuts a on the load side of the mains filter and slide off all eye connections. Do not drop the lock washers in the
projector.
a
a
b
b
b
b
c

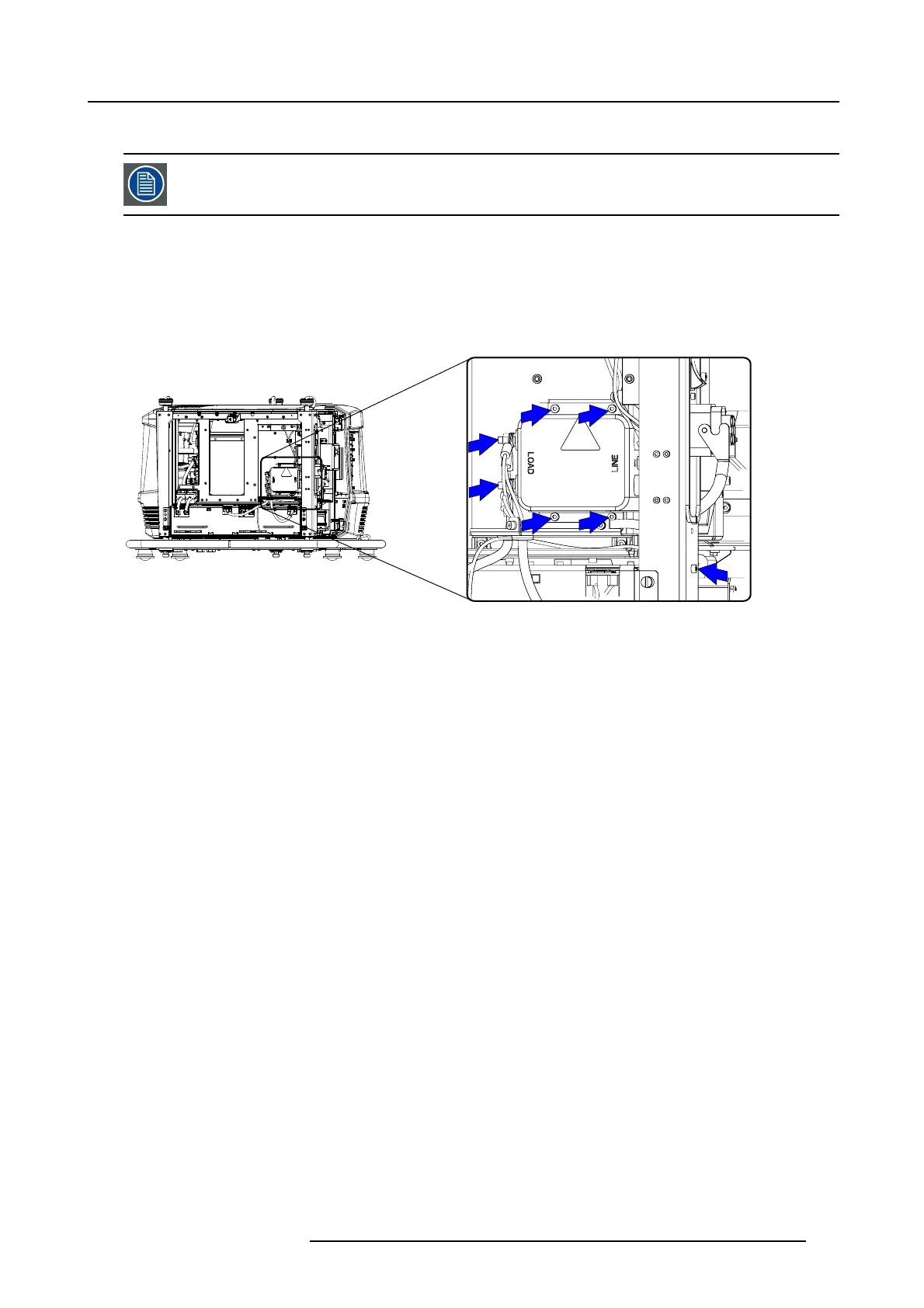

Image 26-8
Mains filter removal
2. Turn out the 4 screws b.
3. Slide the mains filter to the left or upwards to take it out. As it can get stuck behind the plate, loosen screw c a little so that the
plate can move a little.
4. Remove the nuts on the line side and slide off all eye connections
. Do not drop the lock washers in the projector.
The mains filter can be replaced.
R59770072 FLM SERIES 19/03/2007
291
