6. Removal and installation of projector covers
6.10 Installation of the side cover
Necessary tools
7 mm flat screw driver.
Howtoinstallthesidecoveroftheprojector?
1. Check if the bottom and top filters are present.
2. Check the pressure indicated on the internal manometer of the liquid cooling circuit. This pressure should be between 0,5 and 1
bar. If the pressure is out of range, inform the responsible and qualified technician, so he may take necessary corrective action.
1
0
.
5

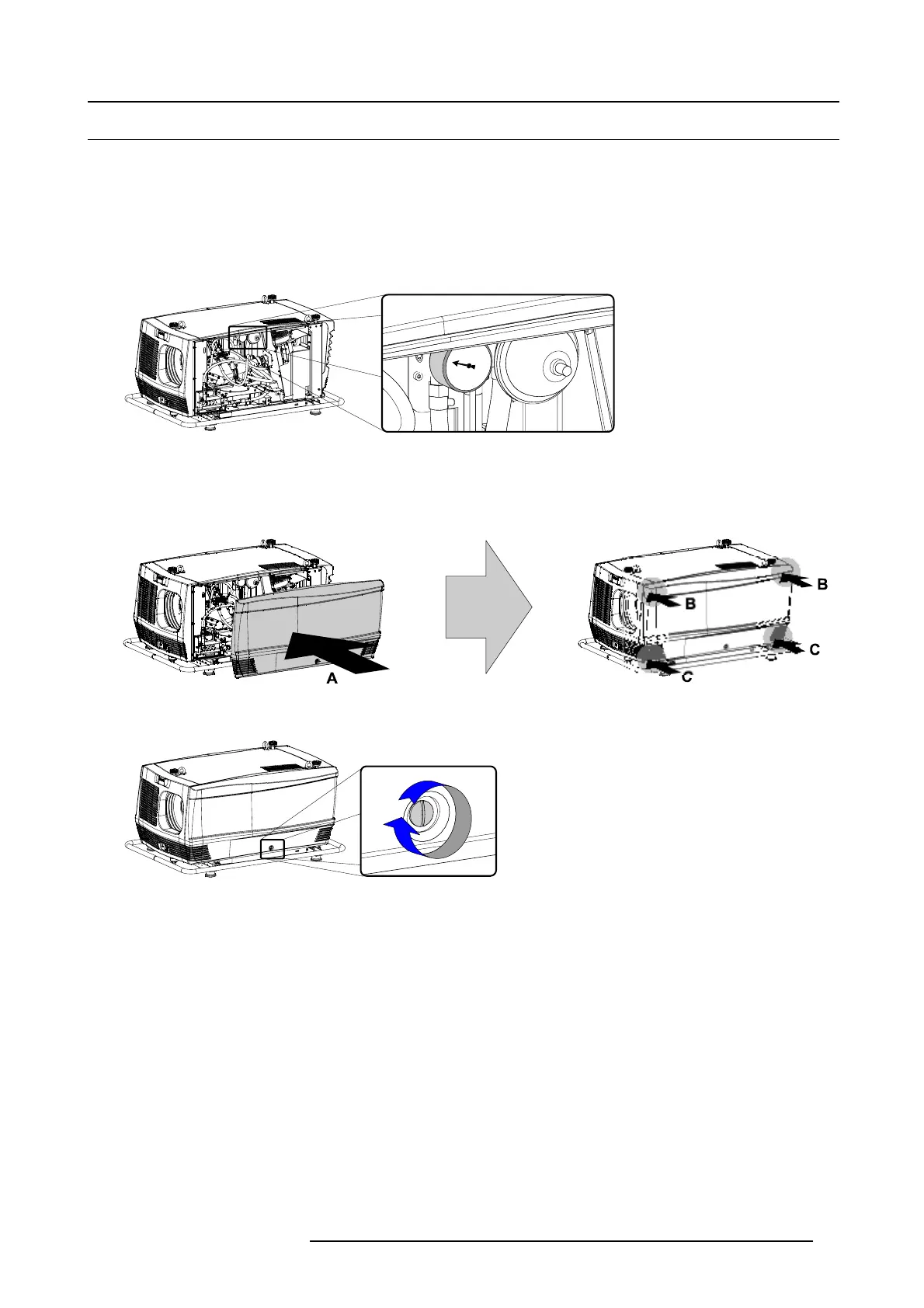

Image 6-17
3. Install the side cover of the projector doing the following:
a) Bring the side cover towards its final position (A),
b) then gently push the locking studs of the top corners (B) into their receivers,
c) then gently push the locking studs of the bottom corners (C) into their receivers.
Image 6-18
4. Secure the side cover by locking the captive screw in the middle at the bottom of the side cover.
Image 6-19
R59770072 FLM SERIES 19/03/2007 81
