24. Fan replacements
24.5.3 Fan replacement
Necessary tools
Allen key 3 mm
How to replace

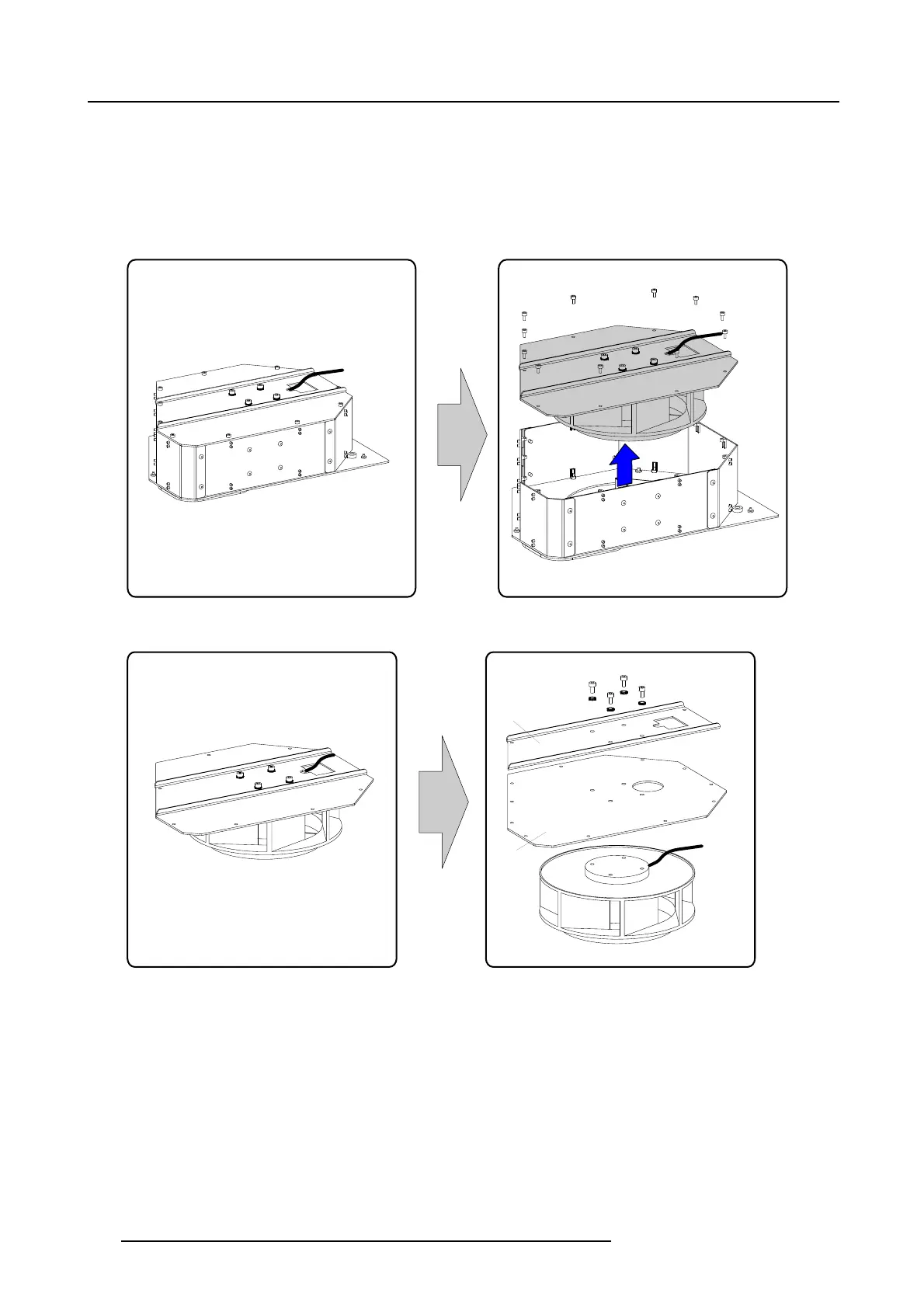

1. Turn out the 11 screws and take out the fan assembly.
Image 24-46
2. Turn out the 4 fixation screws and remove the lock washers..
A
B
Image 24-47
Fan removal
3. Take off plate B and then plate A.
4. Take the new fan and push the cable through the hole in plate A. Position the plate on the fan so that the fixation holes in the
plate match the holes in the fan.
