7. Dust filters
7.2 Replacement of the dust filter on the bottom side
Necessary parts
• New HEPA dust filter for the bottom side (R9854480).
•2.5mmAllenkey.
How to replace the HEPA dust filter on the bottom side of the projector ?
1. Remove the side cover of the projector, see "Removal of the side cover", page 73.
2. Release (not remove) the two wedge lock screws (A) using a 2.5 mm Allen key as illustrated.
A
A

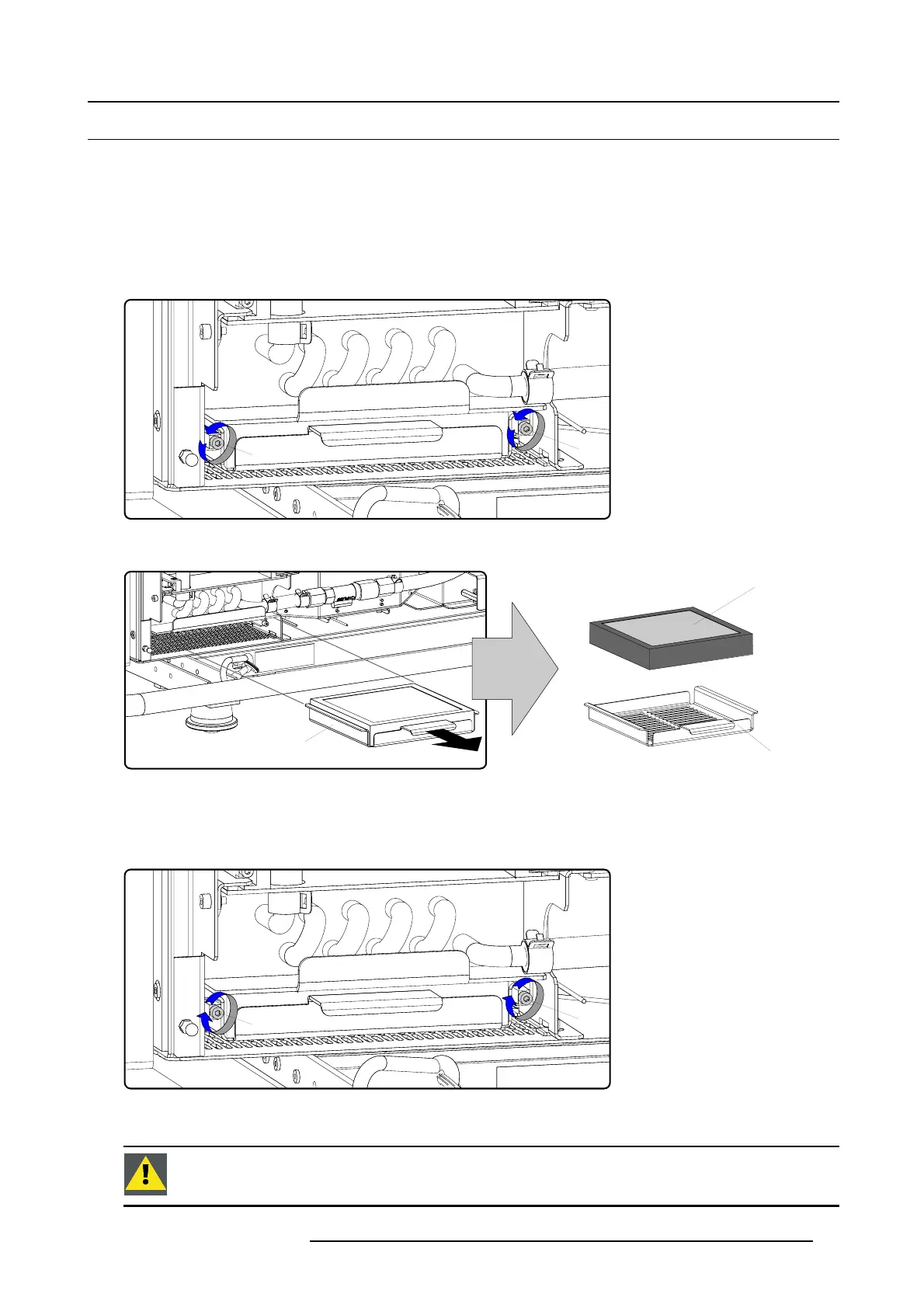

Image 7-3
3. Remove the filter (F) on the bottom side by pulling out the filter holder (H) as illustrated.
F
H
H
Image 7-4
4. Place a new HEPA dust filter in the filter holder.
5. Reinstall the filter holder containing the new HEPA filter.
6. Fasten the two wedge lock screws (A) using a 2.5 mm Allen key as illustrated.
A
A
Image 7-5
7. Reinstall the side cover of the projector, see "Installation of the side cover", page 81.
CAUTION: Never install a used HEPA filter. Always install a new HEPA filter.
