24. Fan replacements

24.3.2 Removal of the axial fan

Necessary tools

Allen key 3 mm

How to remove the fan

1. Disconnect the fan. Connector is situated in compartment below the cooling channel.

2. Cut the cable tie (a) and pull the cable out of the cable guide.

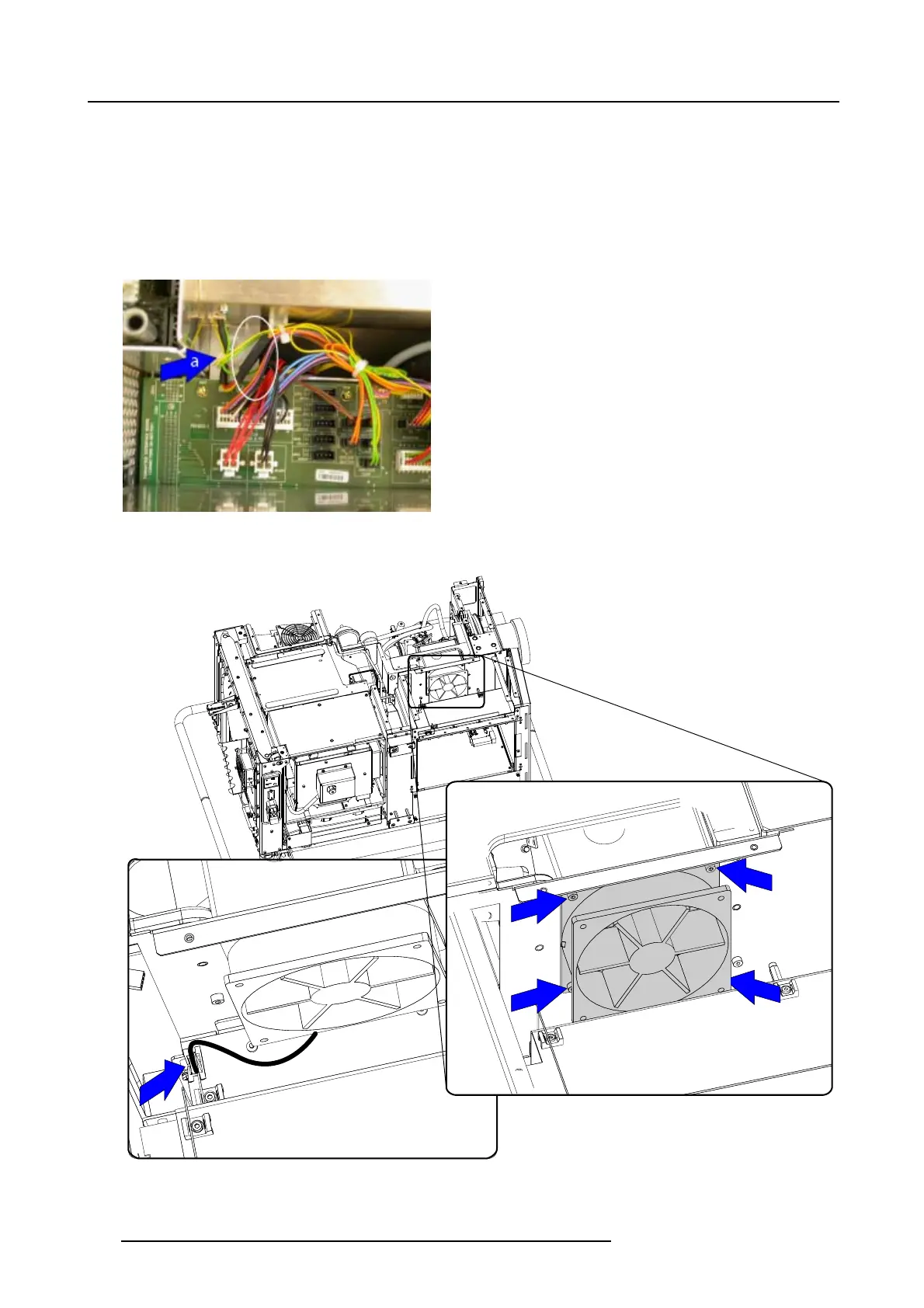

Image 24-21

Fan connector

3. Turn out the 4 hexagon socket head cap screws holding the fan to the mounting plate. Use a 3 mm Allen key.

Image 24-22

4. Take out the fan.

246 R59770072 FLM SERIES 19/03/2007
