24. Fan replacements

24.7.1 Replacing the right fan

Remove first the lens and the front cover.

Necessary tools

Allen key 3 mm

How to replace the right fan

1. Remove the HEPA dust filter on the front side by pulling the two spring clamps away from the filter and then moving the filter

forwards.

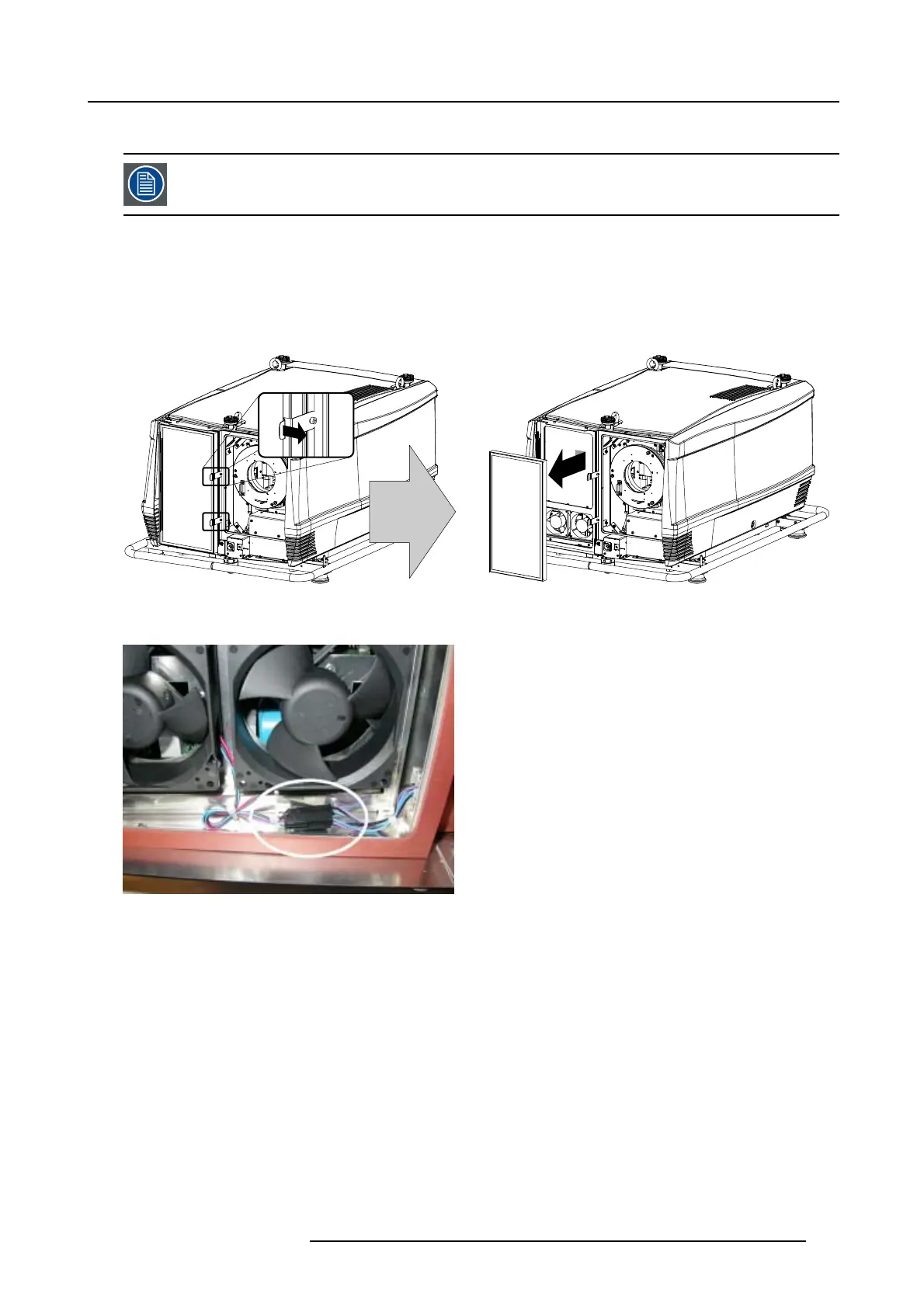

Image 24-57

Remove dust filter

2. Disconnect the fan. It can be necessary to cut the cable tie.

Image 24-58

Fan connection

3. Turn out the 4 screws and take out the fan.

R59770072 FLM SERIES 19/03/2007
