6. Removal and installation of projector covers
6.11 Installation of the lamp cover
Necessary tools
7 mm flat screw driver.
How to install the lamp cover of the projector ?
1. Install the lamp cover of the projector doing the following:
a) Bring the lamp cover towards its final position (A),
b) then gently push the locking stud at the left top corner (B) into its receiver,
c) then gently push the locking stud at the left bottom corner (C) into its receiver.

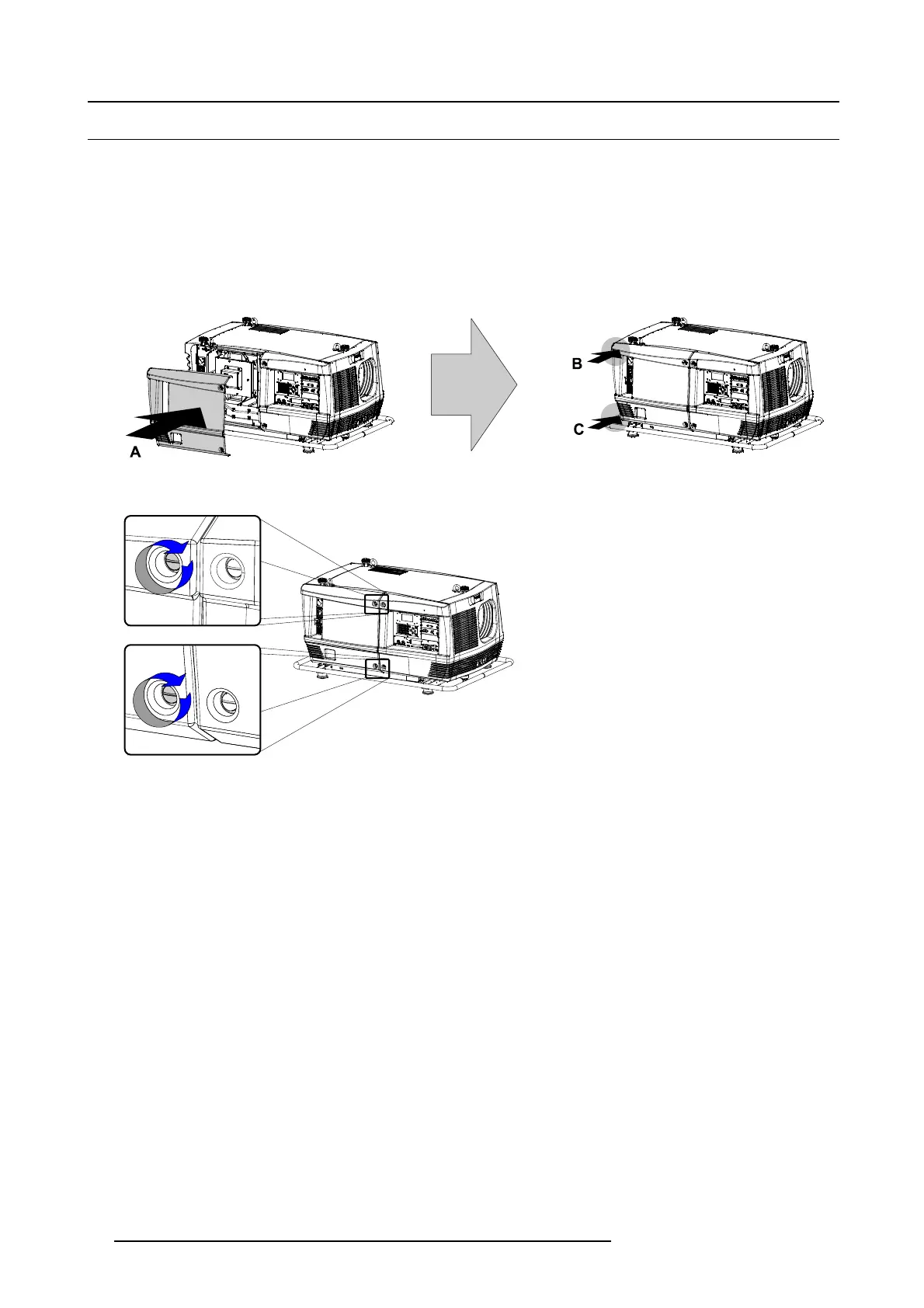

Image 6-20
2. Secure the lamp cover by locking the two captive screws at the right side of the lamp cover
.
Image 6-21
82 R59770072 FLM SERIES 19/03/2007
