15. Vertical and Horizontal shift motors
15.3 Removal of the horizontal lens motor
Before you can start with the removal of the motor, the lens holder must be built out, see "Removing the lens
holder", page 130 for more explanation on how to build out.
Necessary tools
•Allenkey3mm
•Allenkey2.5mm
•Allenkey2mm
•Allenkey1.5mm
How to remove
1. Remove the 4 screws a and take off cover b.
a
a
a
a
b
c

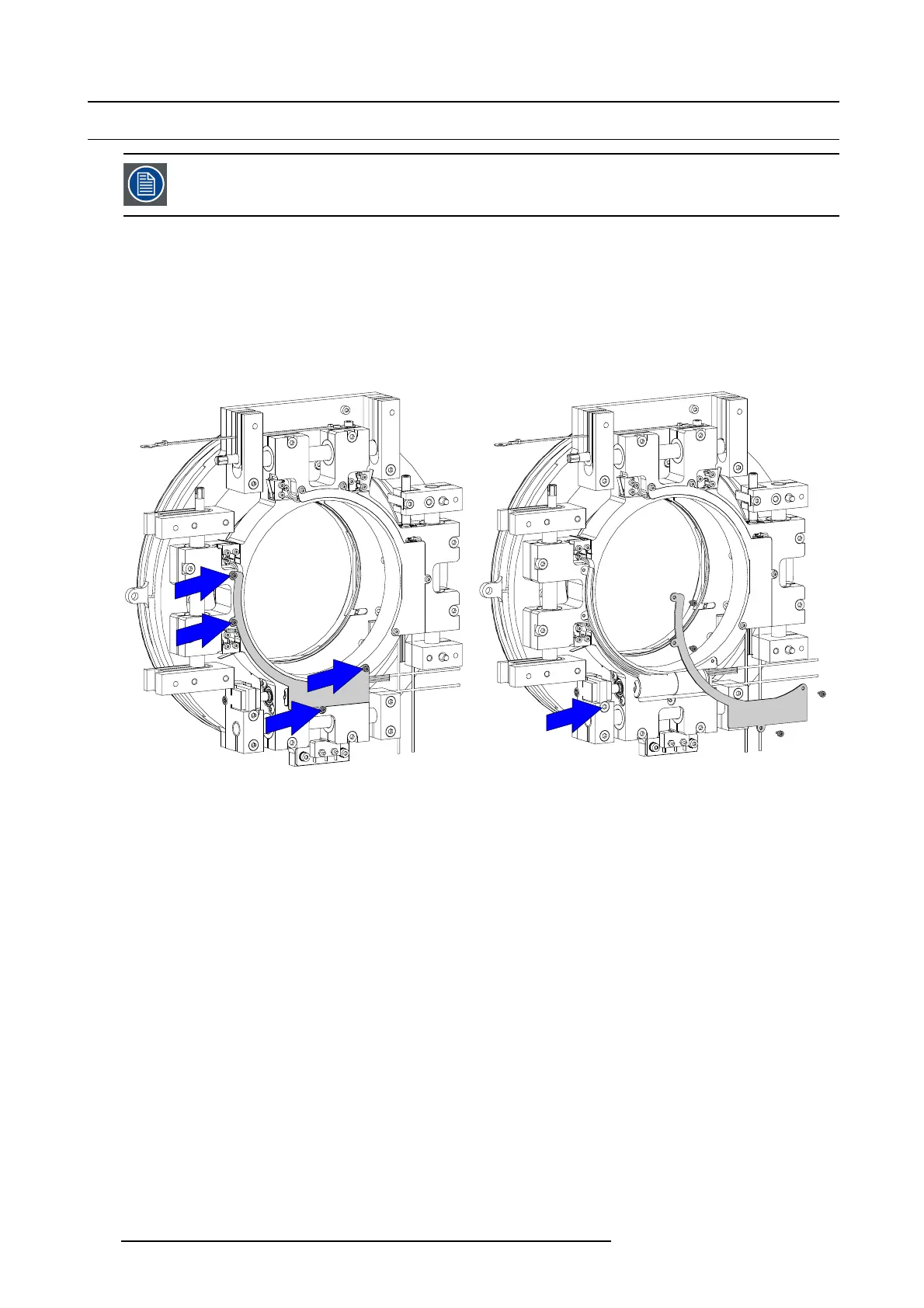

Image 15-10
Remove motor cover plate
2. Turn out screw c.
3. Loosen both screws d and push out axe e.
146
R59770072 FLM SERIES 19/03/2007
