15. Vertical and Horizontal shift motors
d
b
c
a

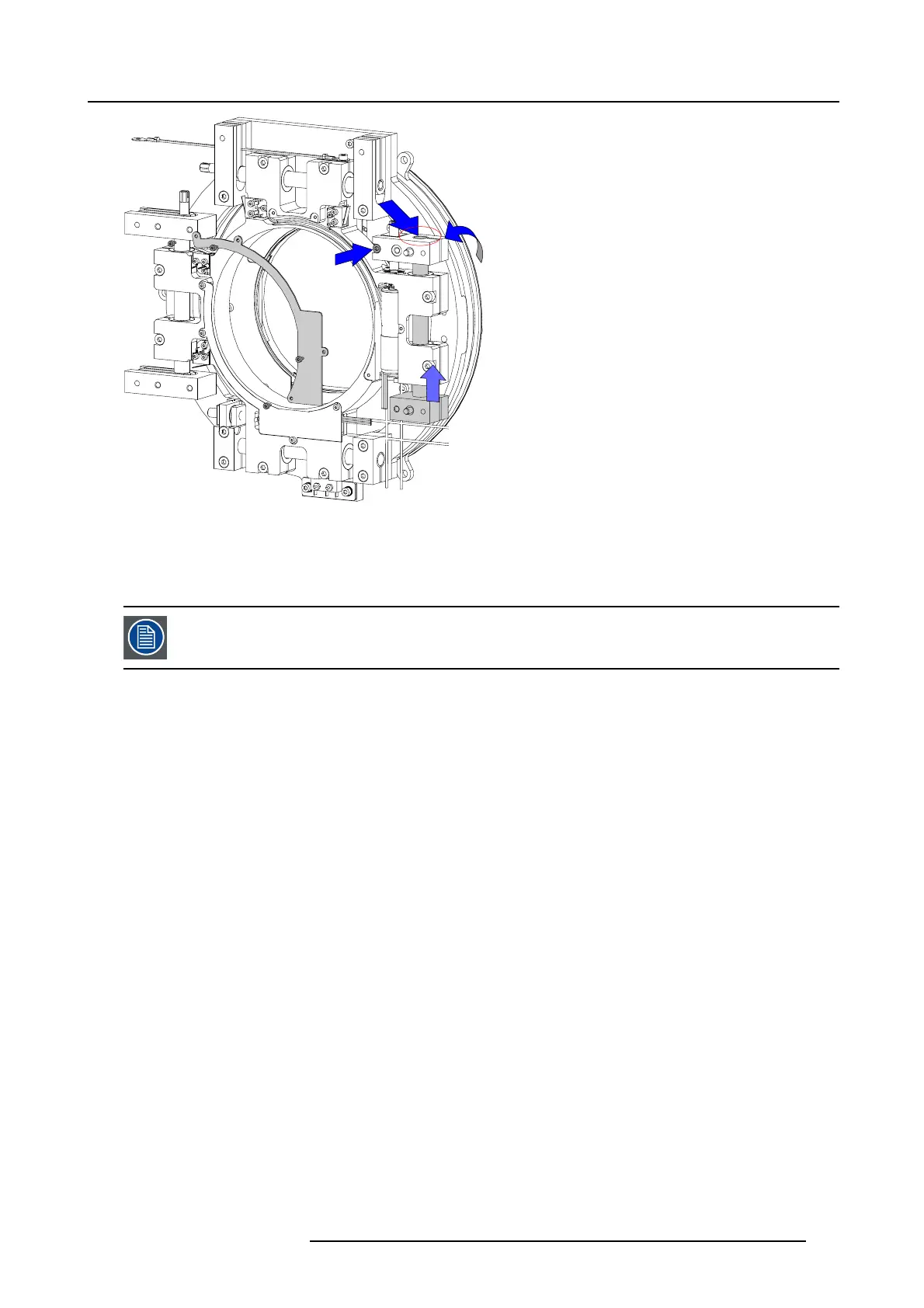

Image 15-9
Fixate mechanism
7. Turn in screw b and fasten the screw at the back side of the block (c). Make sure that both block on the axe are parallel with
each other.
8. Guide all cables in the groove, place the cover plate (d) on its place and turn in the 4 screws.
Insert the lens holder in the projector, see "Installing the lens holder", page 132 for a detailed description.
Then, reinstall all covers and insert the lens.
