17. Heat exchanger
17.2 Disassembling the heat exchanger assembly
How to disassemble

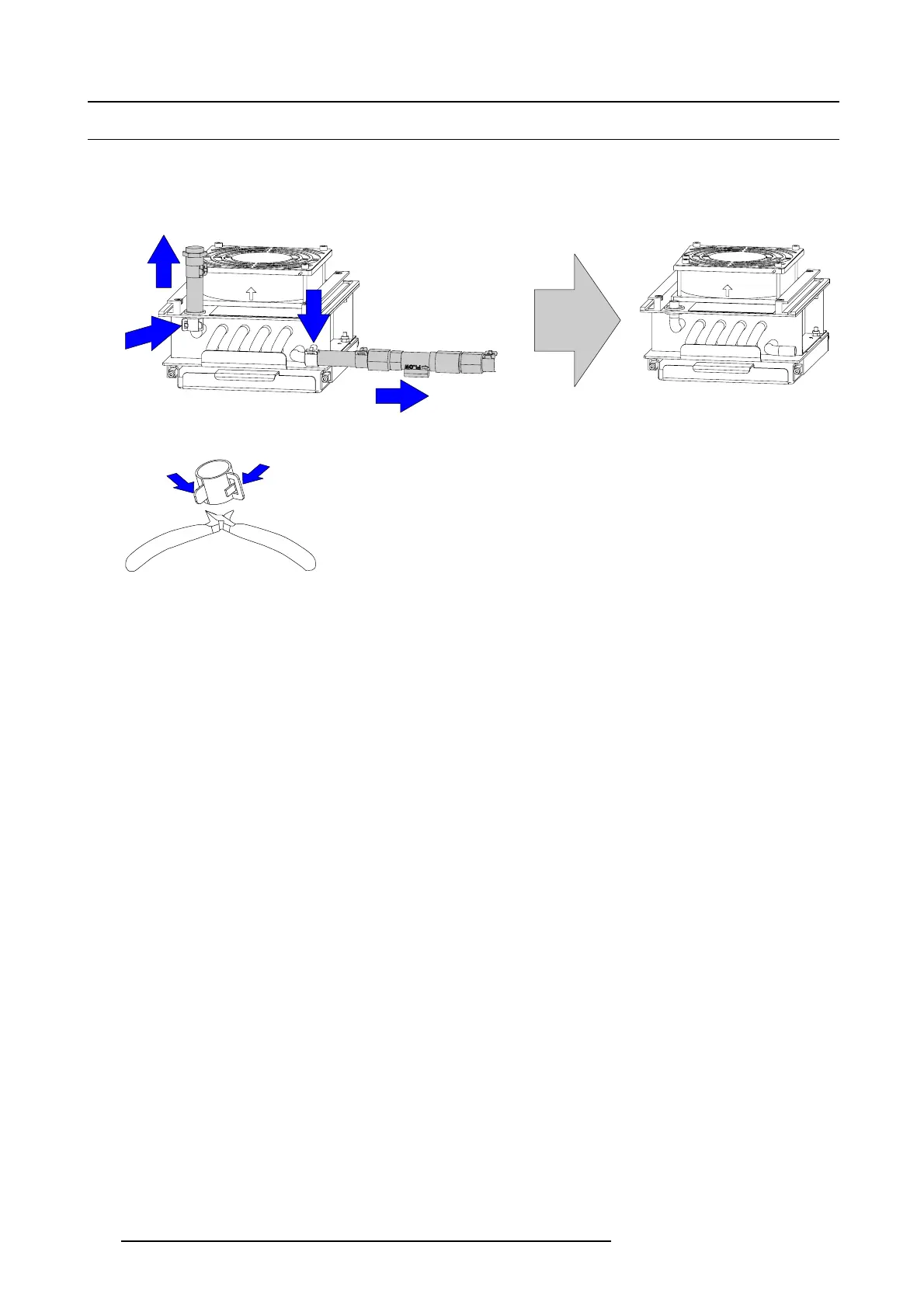

1. Remove both indicated clips (1 & 3) with a universal plier. Push both clip tongs to each other in order to open the clip and move
the clip away from the hose (when releasing the both clip tongs, it camps again.
1
2
3
4
Image 17-6
Image 17-7
2. Pull off both tube assembly (2 & 4).
3. Loosen on both sides the nuts holding the fan assembly to the heat exchanger.
182
R59770072 FLM SERIES 19/03/2007
