17. Heat exchanger

A

B

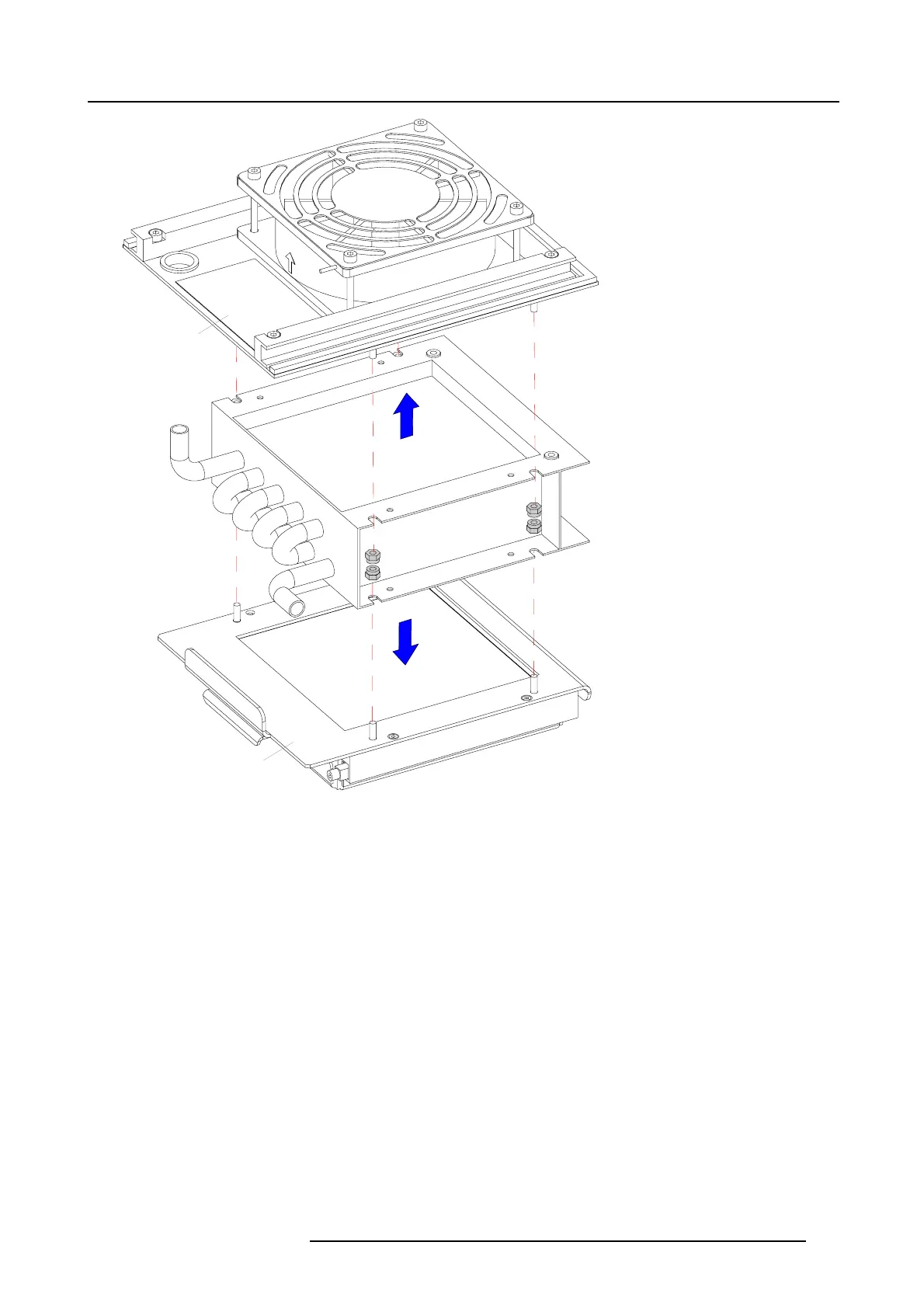

Image 17-8

Disassembling heat exchanger

A Dust filter assembly

B Heat exchanger fan assembly

4. Loosen on both sides the nuts holding the dust filter assembly to the heat exchanger.

R59770072 FLM SERIES 19/03/2007

183

Table of Contents
