6. Removal and installation of projector covers
6.1 Removal of the front cover
Necessary tools
7 mm flat screw driver.
How to remove the front cover of the projector ?
1. Remove the lens. See chapter "Lens removal", page 66.
2. Remove the rubber dust ring from the lens holder. See image 6-1.
3. Release the captive screw at the middle bottom of the front cover, using a flat screw driver.

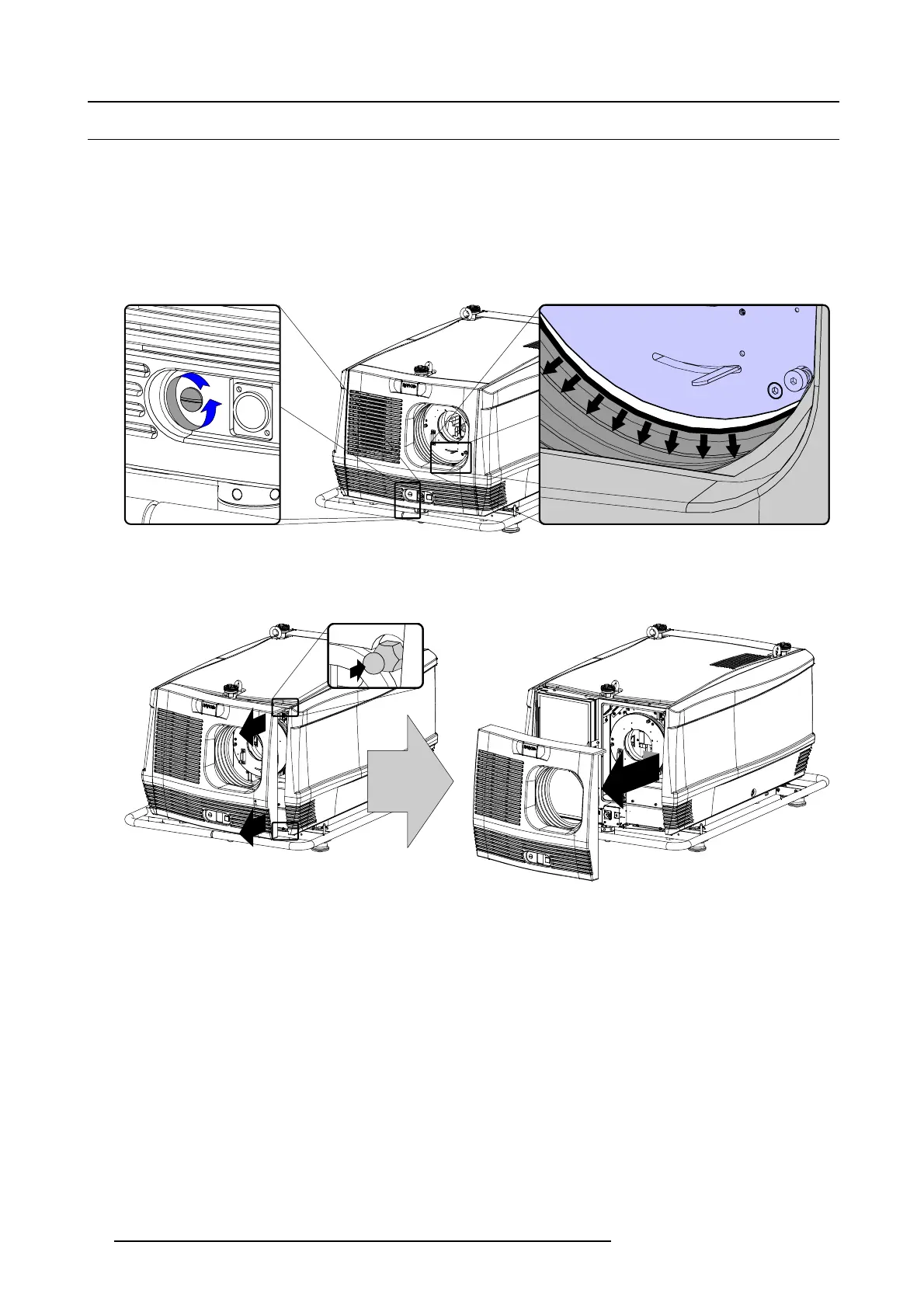

Image 6-1
4. Remove the front cover from the projector doing the following:
a) standing in front of the projector, pull the right side of the front cover toward you until the latches release (left side is hinged)
b) then slide the front cover to the right to release it from the hinging points.
Image 6-2
72 R59770072 FLM SERIES 19/03/2007
