Barco FLM series User Manual

22. LCD panel replacement
22.1 Removing the LCD panel
First remove the Input cover and take out the Input & Communication unit.
Necessary tools
• Nut driver 5.5 mm
•Allenkey3mm
•Allenkey2mm
How to remove the panel

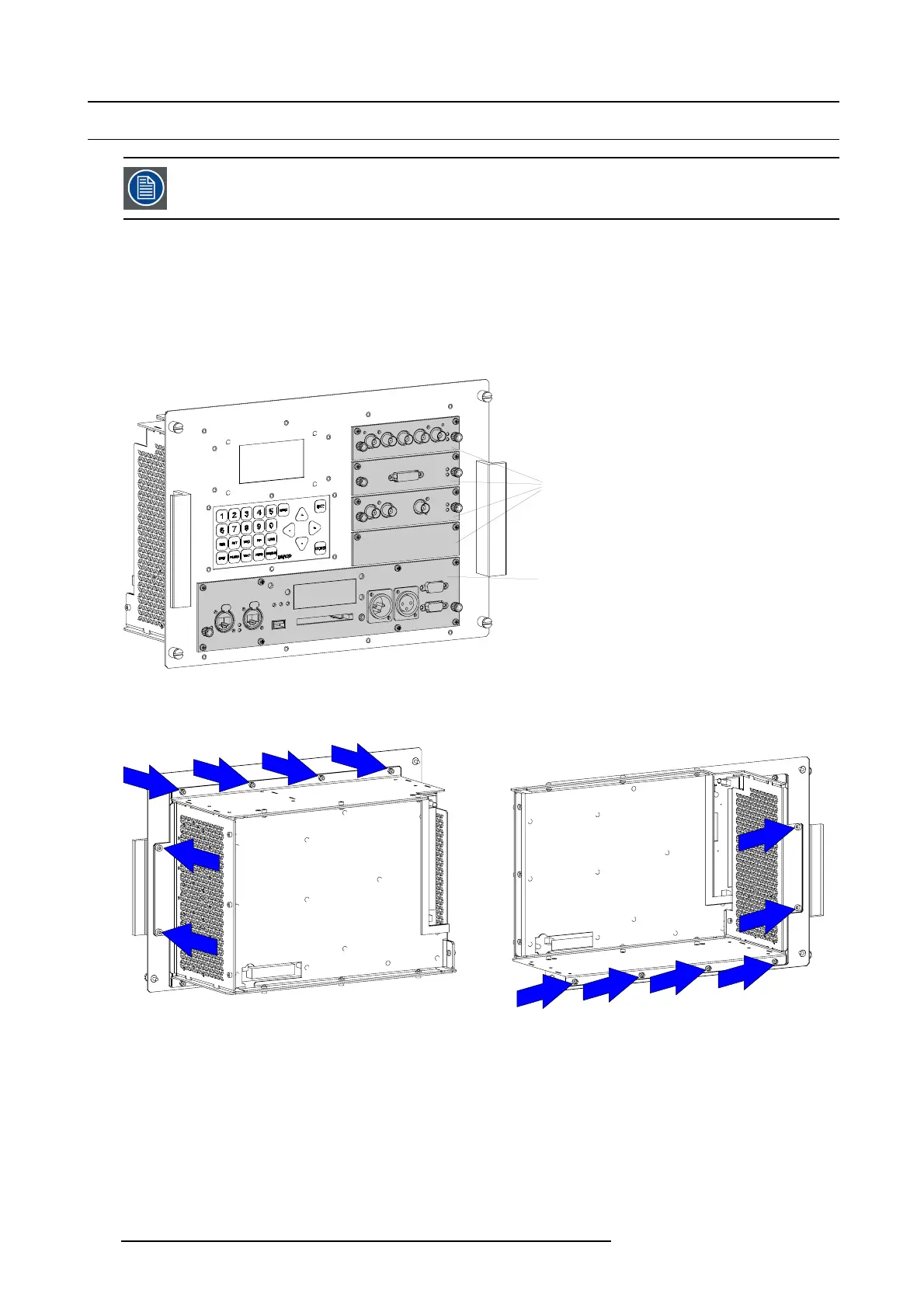

1. Remove all input modules (A) and the communication module (B).
A
B
Image 22-2
Input and communication modules removal
2. Lay down the module on its handles and remove the 4 screws a.
Remove the 8 indicated nuts.
a
a
a
a
Image 22-3
Remove housing
3. Take off the complete housing.
Disconnect the plug coming from the PMP board (not necessary but handy).
220
R59770072 FLM SERIES 19/03/2007
