24. Fan replacements
24.3.4 Mounting the top plate
Necessary tools
•Allenkey3mm
• Flat screwdriver 7 mm
How to mount
1. Place first the big plate on the projector frame.
A

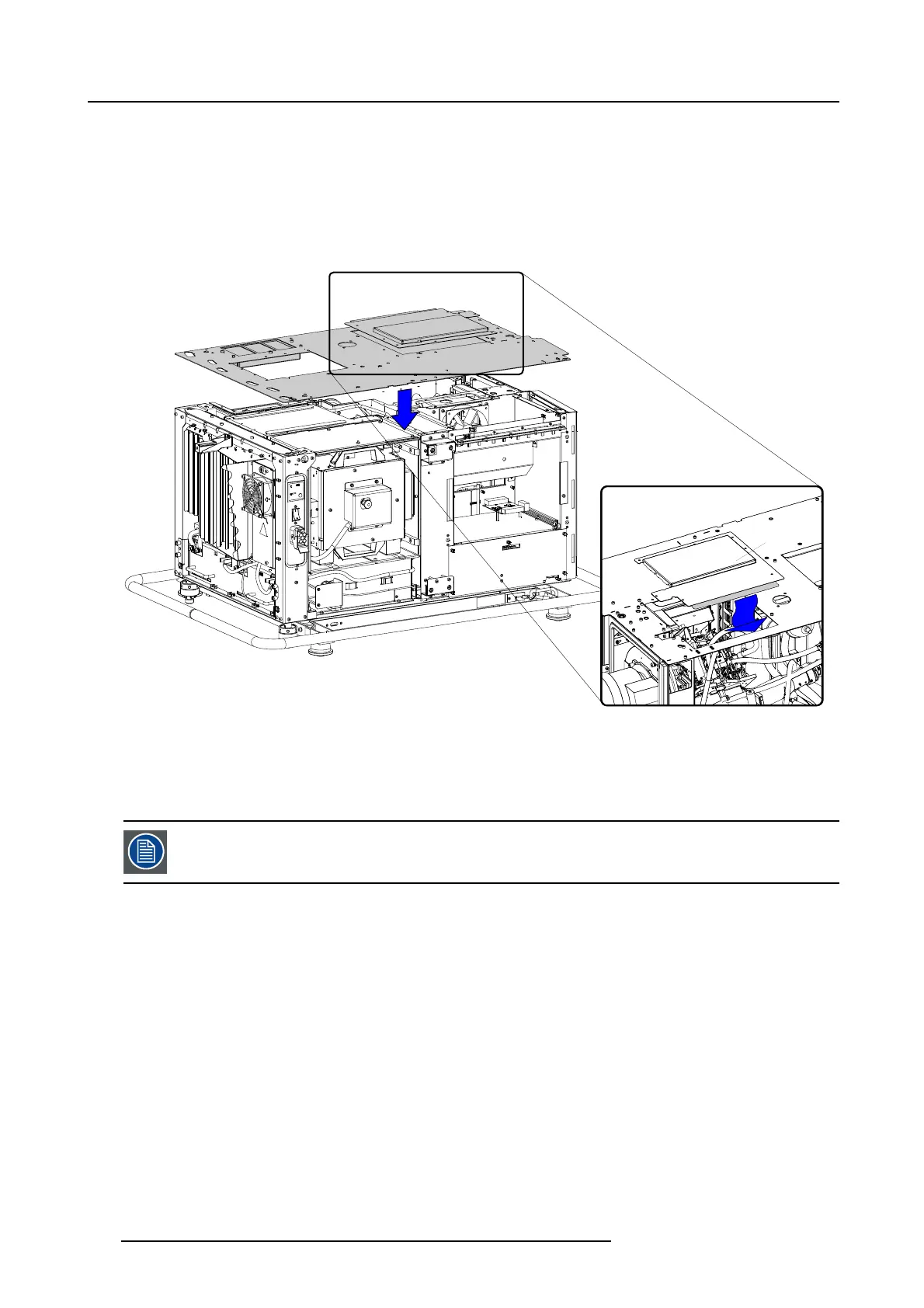

Image 24-24
Mounting top plate
2. Turn in the screws which will be covered by the small plate.
3. Push the joggle of the small plate (A) behind the big plate and lay down this small plate.
4. Turn in all screws.
Reinstall the light processor assembly and the Inpu
t & communication unit.
Install all cover of the projector.
248 R59770072 FLM SERIES 19/03/2007
