Barco FLM series

6. Removal and installation of projector covers
6.5 Removal of the back cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7 mm flat screwdriver.

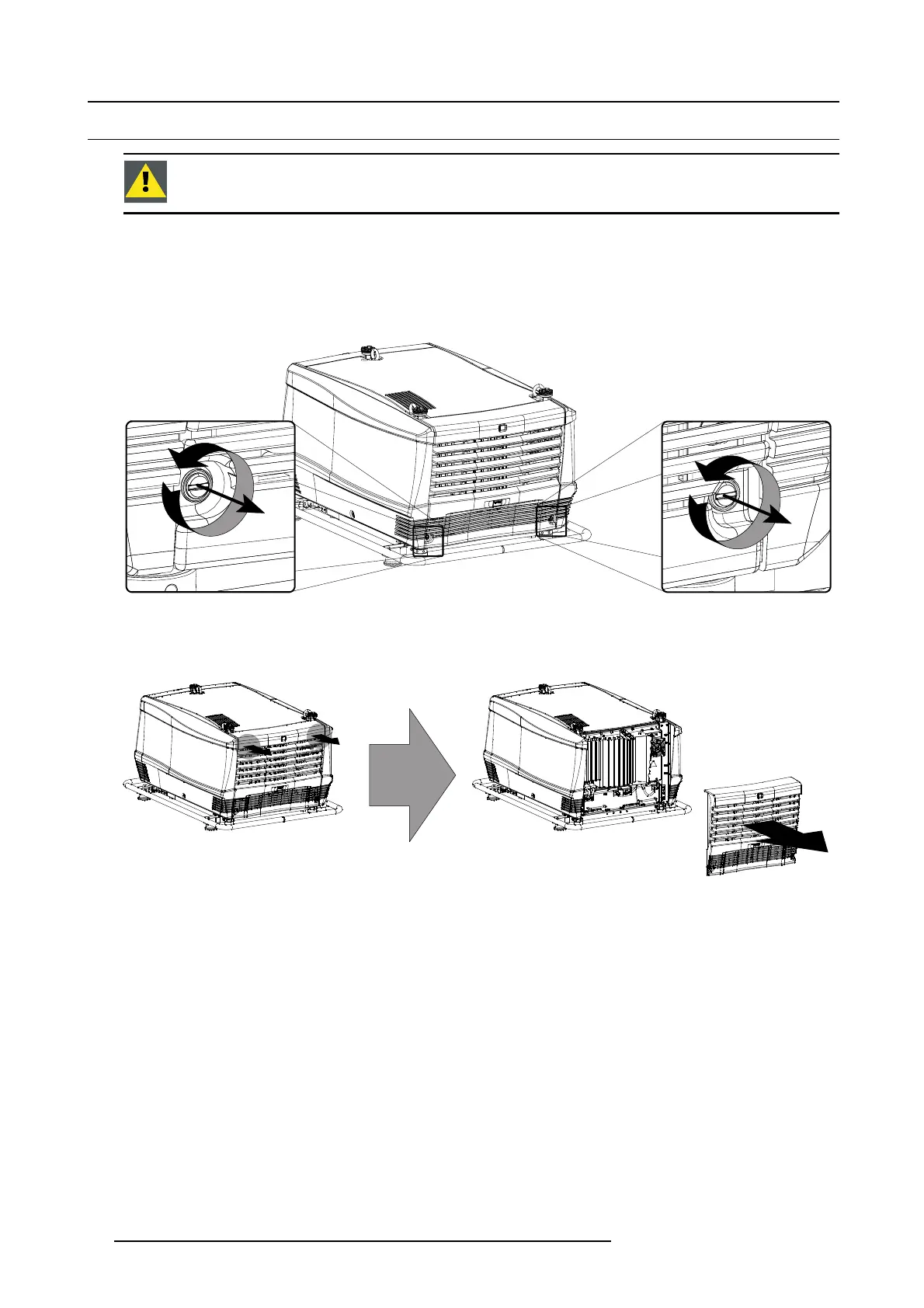

How to remove the back cover from the projector
1. Release the two captive screws at the bottom corners of the back cover, using a flat screw driver.
Image 6-9
2. Remove the back cover of the projector doing the following:
a) gently pull out the top corners of the back cover,
b) then move the back cover away from the projector.
Image 6-10
76 R59770072 FLM SERIES 19/03/2007
