15. Vertical and Horizontal shift motors
G
F
E
D
D
C
A
B
Image 15-8
Mount assembly
4. Turn the first squared nut C on the axe until the middle of the axe. Then slide both washers D on the axe with the spherical side
towards each other. Continue with the connection piece E and finally, turn again a squared nut F on the axe.
Fasten both squared nuts so that there is no play anymore but so that when pulling or pushing on the connection piece, it still
canmoveupordown.

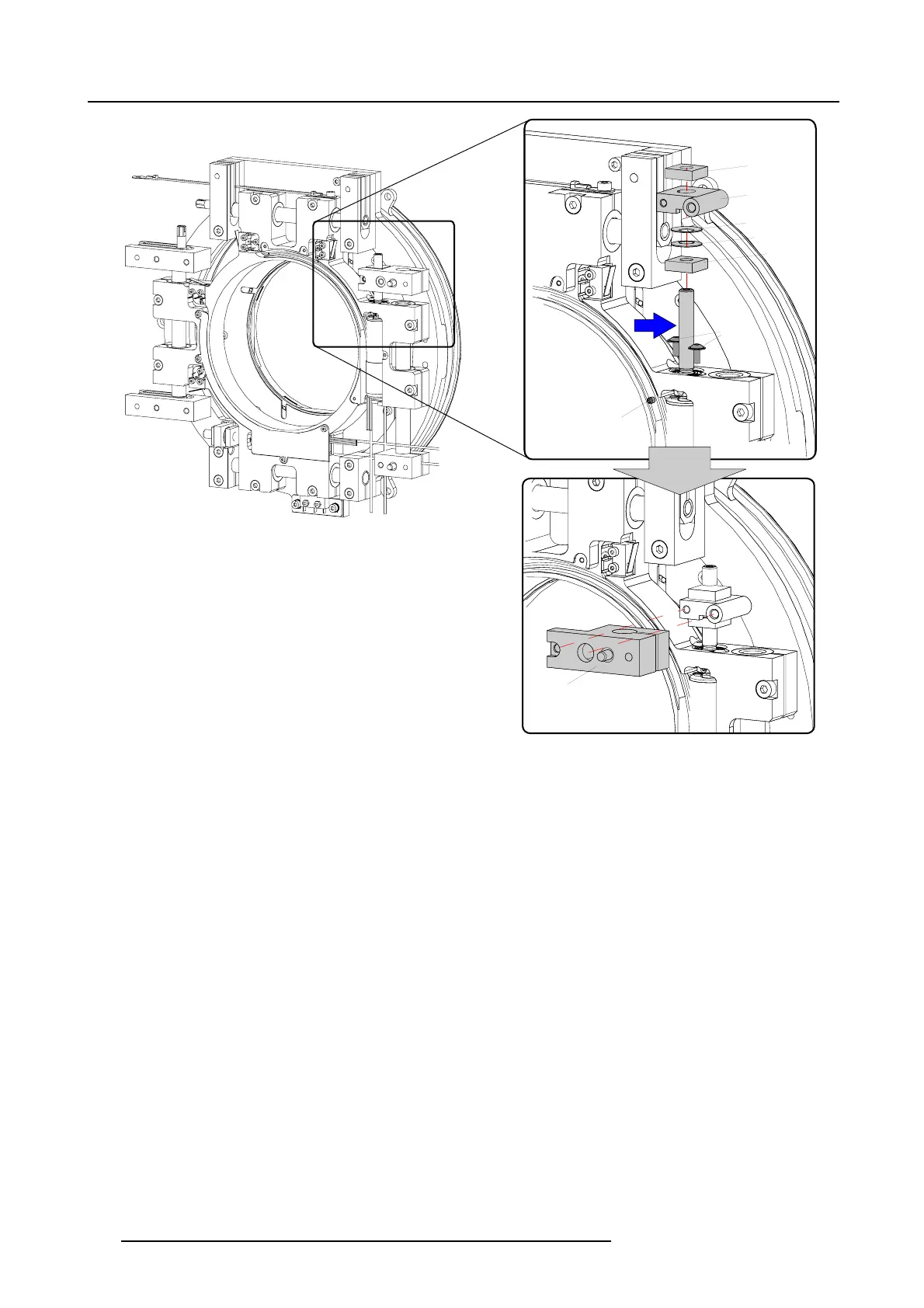

5. Place block G on its place.
6. Side the axe combination (a) back through the hole in the block so that the end of the axe is equal with the side of the block.
144
R59770072 FLM SERIES 19/03/2007
