24. Fan replacements

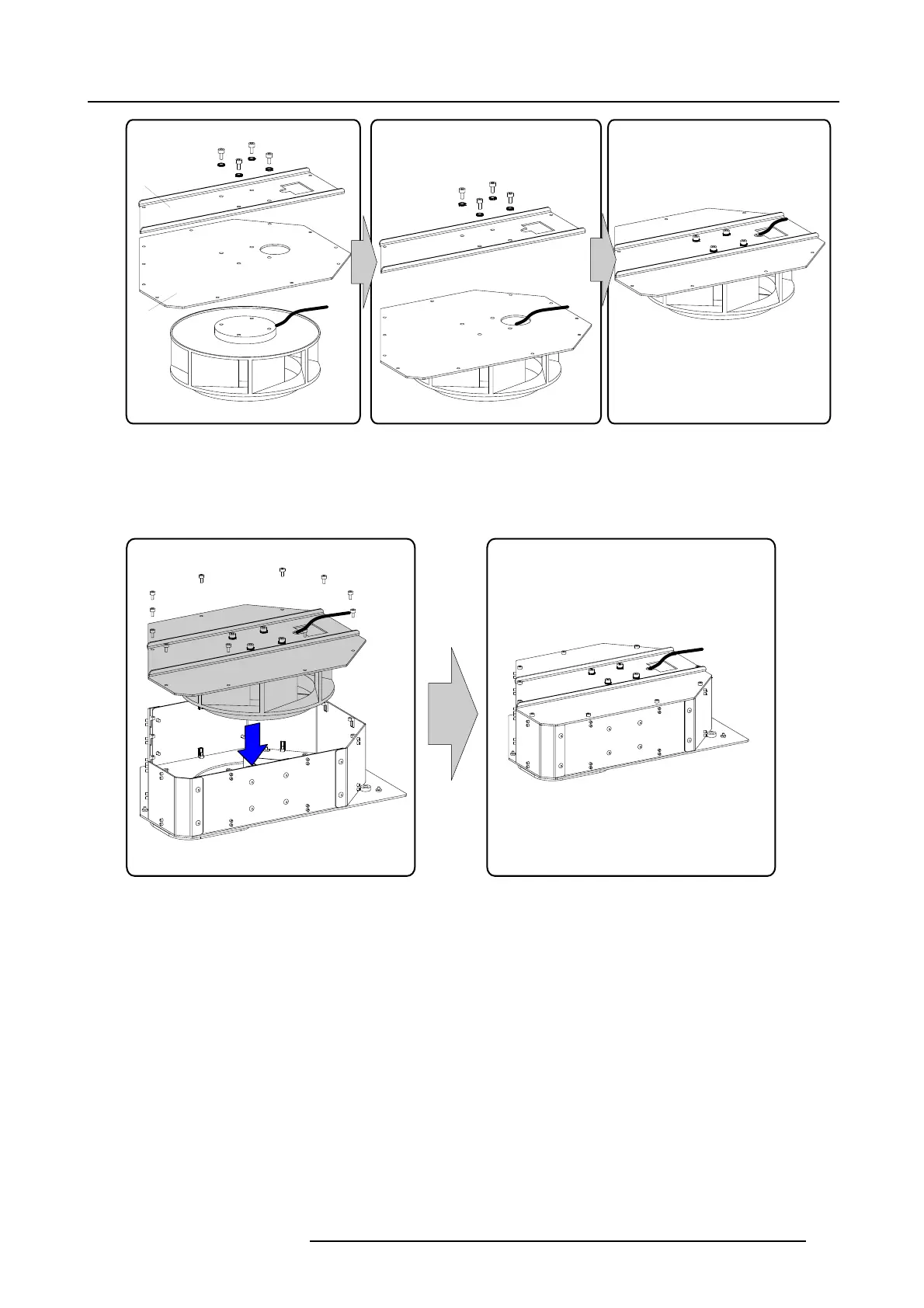

Image 24-48

Fan assembly

5. Push the cable through the hole in plate B and place plate B on plate A so that the fixation holes match the holes in plate A.

6. Secure with 4 screws. Insert lock washer between each screw and the plate.

7. Insert the assembly in its cabinet and turn in the 11 screws.

Image 24-49

Fan assembly

R59770072 FLM SERIES 19/03/2007 263
