13. Cold mirror assembly

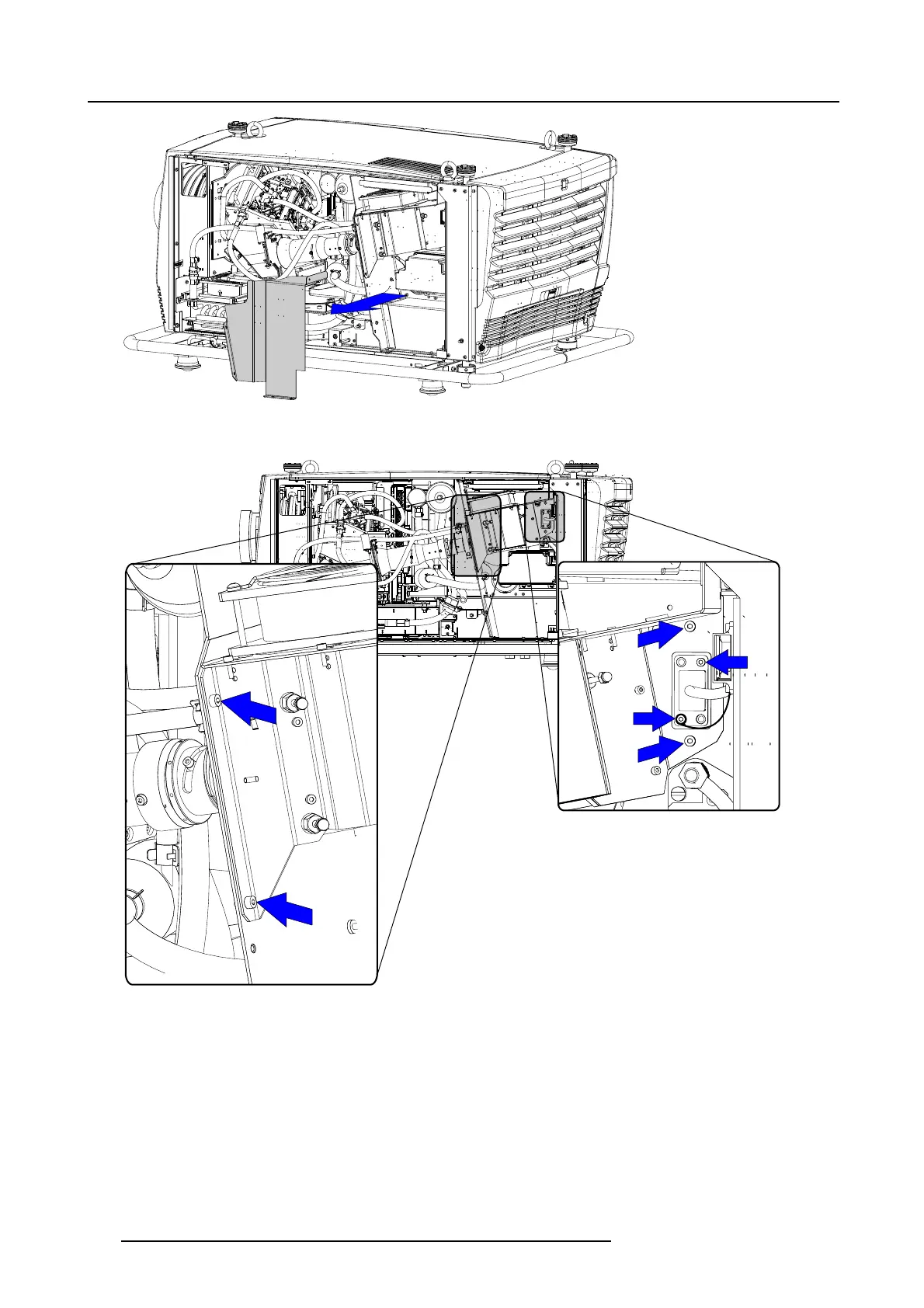

Image 13-3
Remove cover plate
5. Turn out both screws 1 and slide the connector a little backwards.
1
1
2
2
3
3
Image 13-4
Cold mirror assembly removal
6. On the same plate, turn out
both indicated screws 2.
7. At the left side of the cold mirror assembly, turn out both indicated screws 3.
8. Slide out the assembly and disconnect the fan cable.
122
R59770072 FLM SERIES 19/03/2007
