15. Vertical and Horizontal shift motors

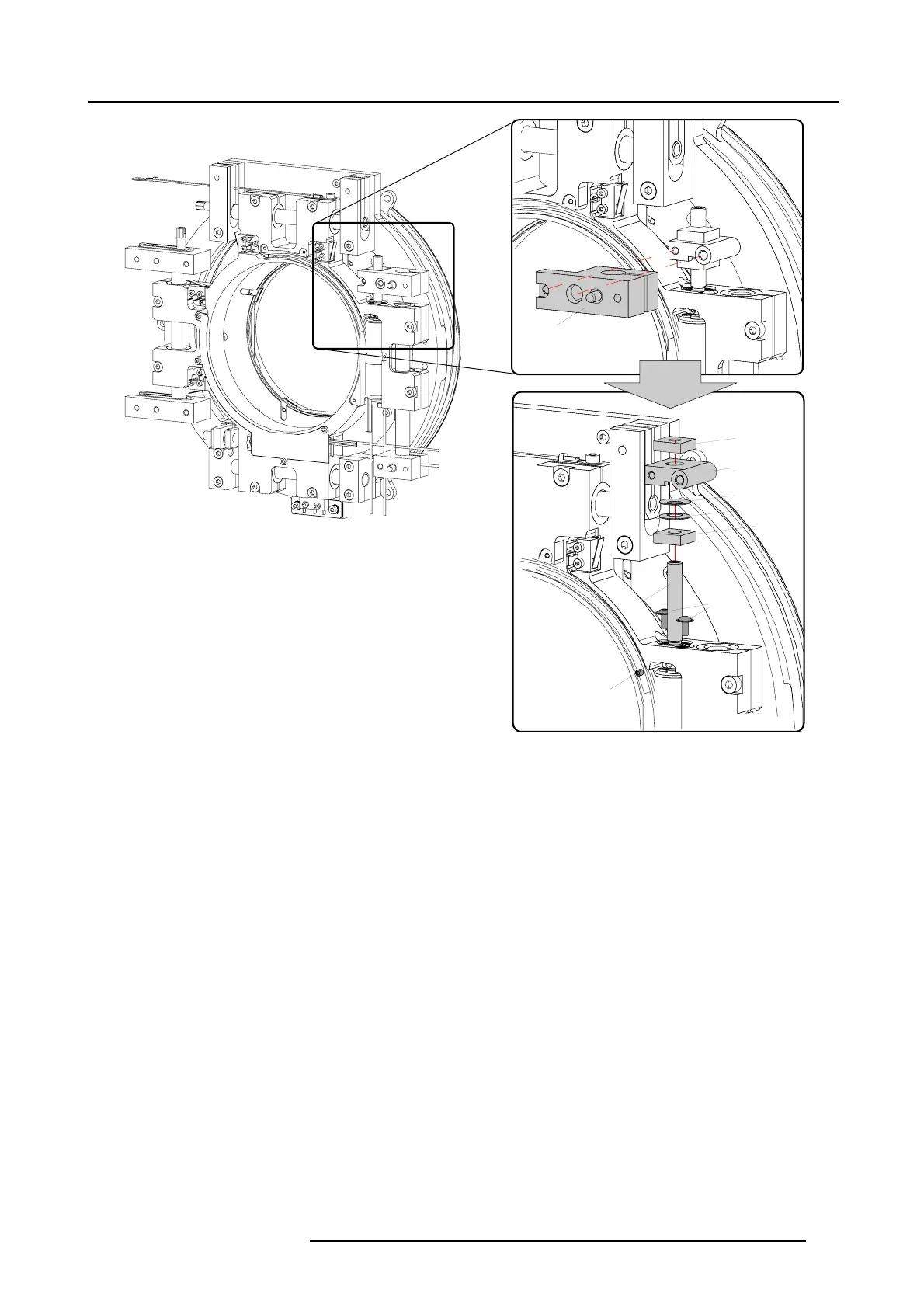

Image 15-3

5. Disassemble everything mounted on the axe (components B to F).

6. Turn out both screws G.

7. Turn out the axe fixation screw H.

8. SlideouttheaxeI.

9. Take out the motor unit. Turn out both screws on the motor unit and remove the plate.

R59770072 FLM SERIES 19/03/2007

141
