13. Cold mirror assembly
3
4
2
2
1
1

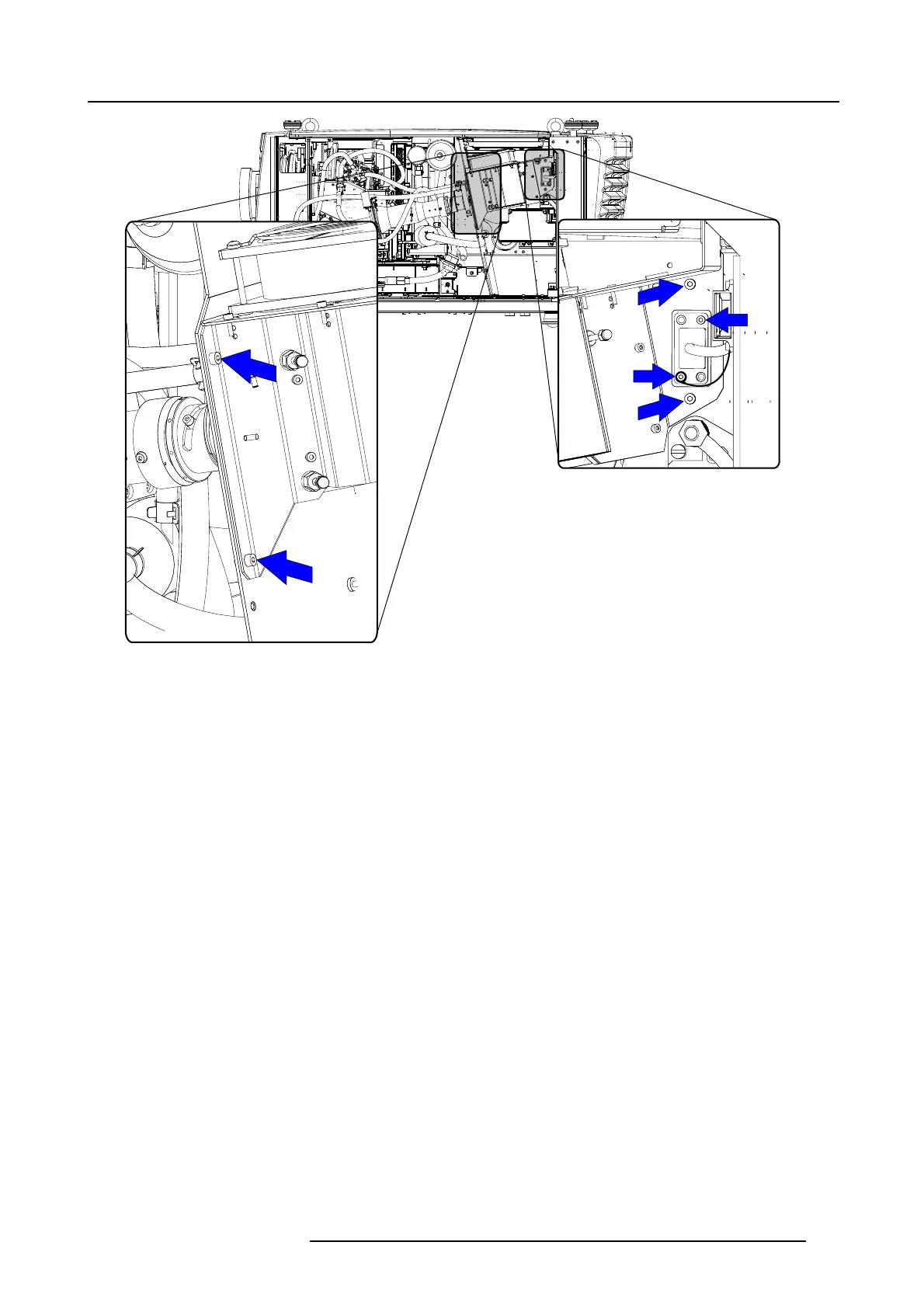

Image 13-7
Secure assembly
3. In the depth, turn in both indicated screws 2.
4. Place the connector on its place. Turn in the upper screws 3.
5. Push the lower screws 4 first through the eye of the ground wire and then turn it in.
6. Insert the cover plate and turn in the 5 indicated screws.
