16. FLM liquid cooling circuit
OUT
NO OUT

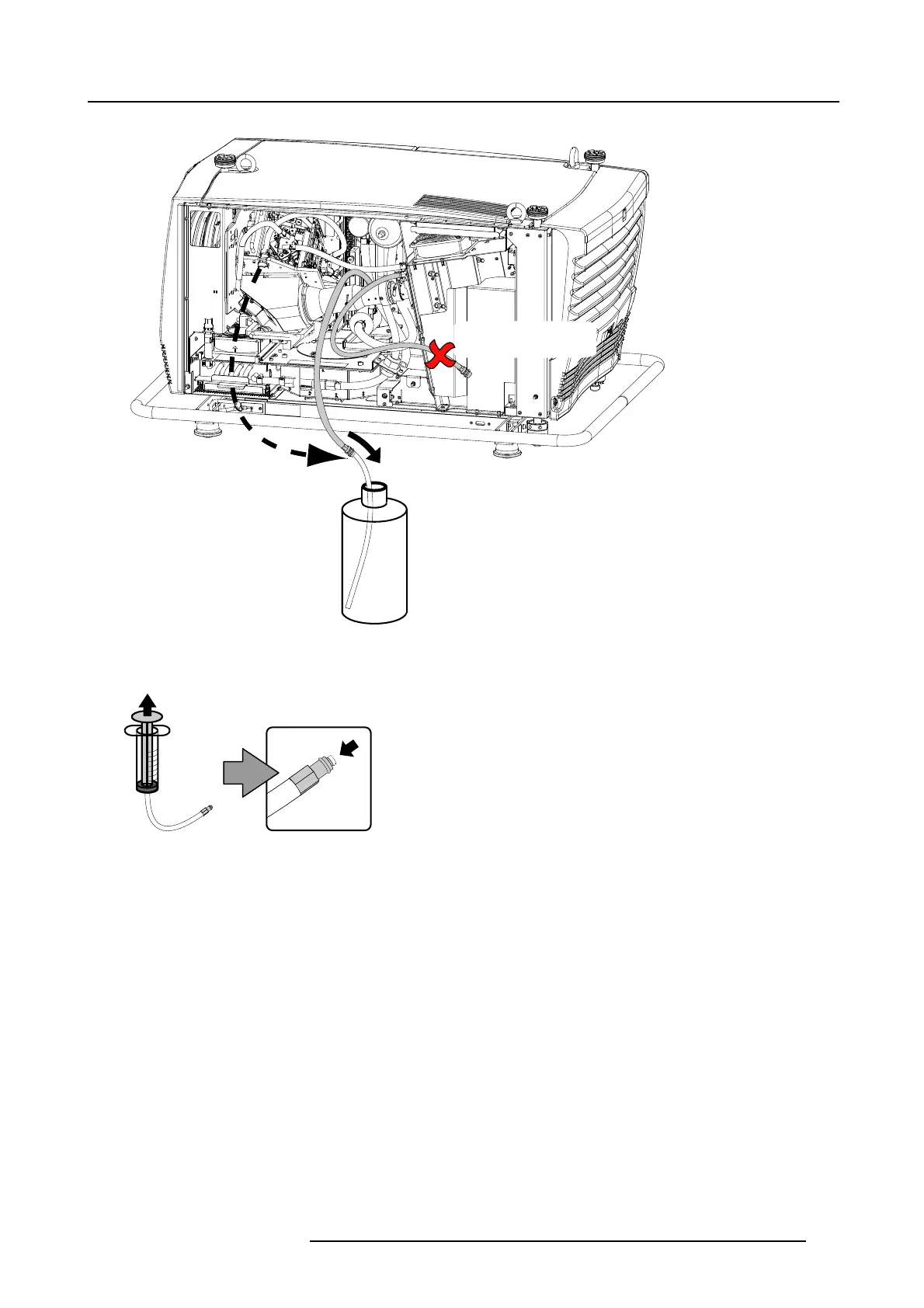

Image 16-6
Draining circuit, excluding light processor circuit
3. Fill the syringe with air. Press in the valve of the male fitting when extracting air.
Image 16-7
4. Couple the air filled syringe to the inlet of the cooling circuit and force air into the circuit via the syringe. Liquid will be expelled
from the circuit exit side into the empty bottle.
R59770072 FLM SERIES 19/03/2007
