16. FLM liquid cooling circuit

abc d e f

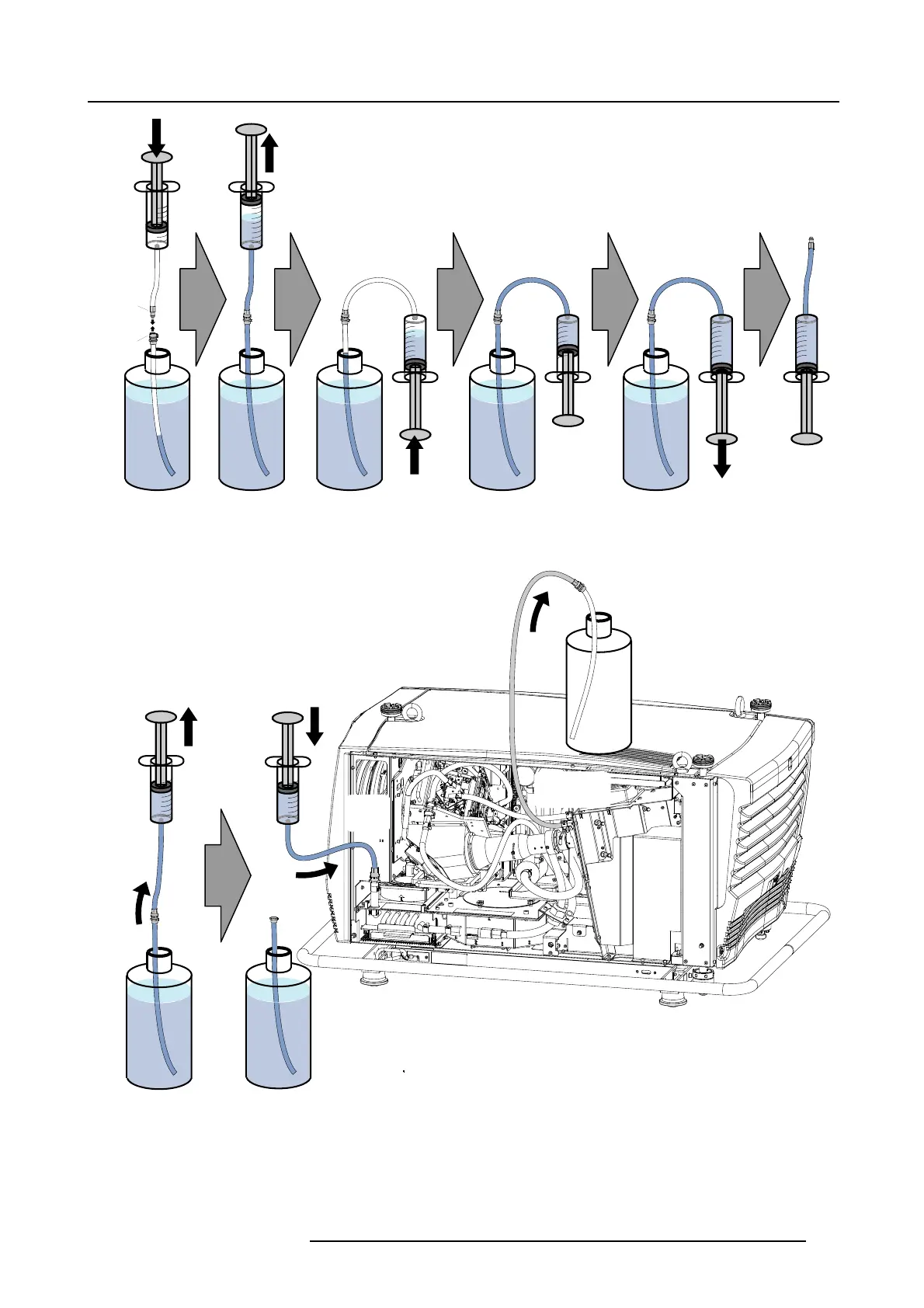

Image 16-13

4. Couple the filled syringe to the inlet of the cooling circuit and press the cooling liquid inside the circuit.

Caution: Position the empty bottle above the liquid circuit (on top of projector).

OUT

Image 16-14

Filling complete cooling liquid circuit

R59770072 FLM SERIES 19/03/2007 165
