21. Pixel map processor board

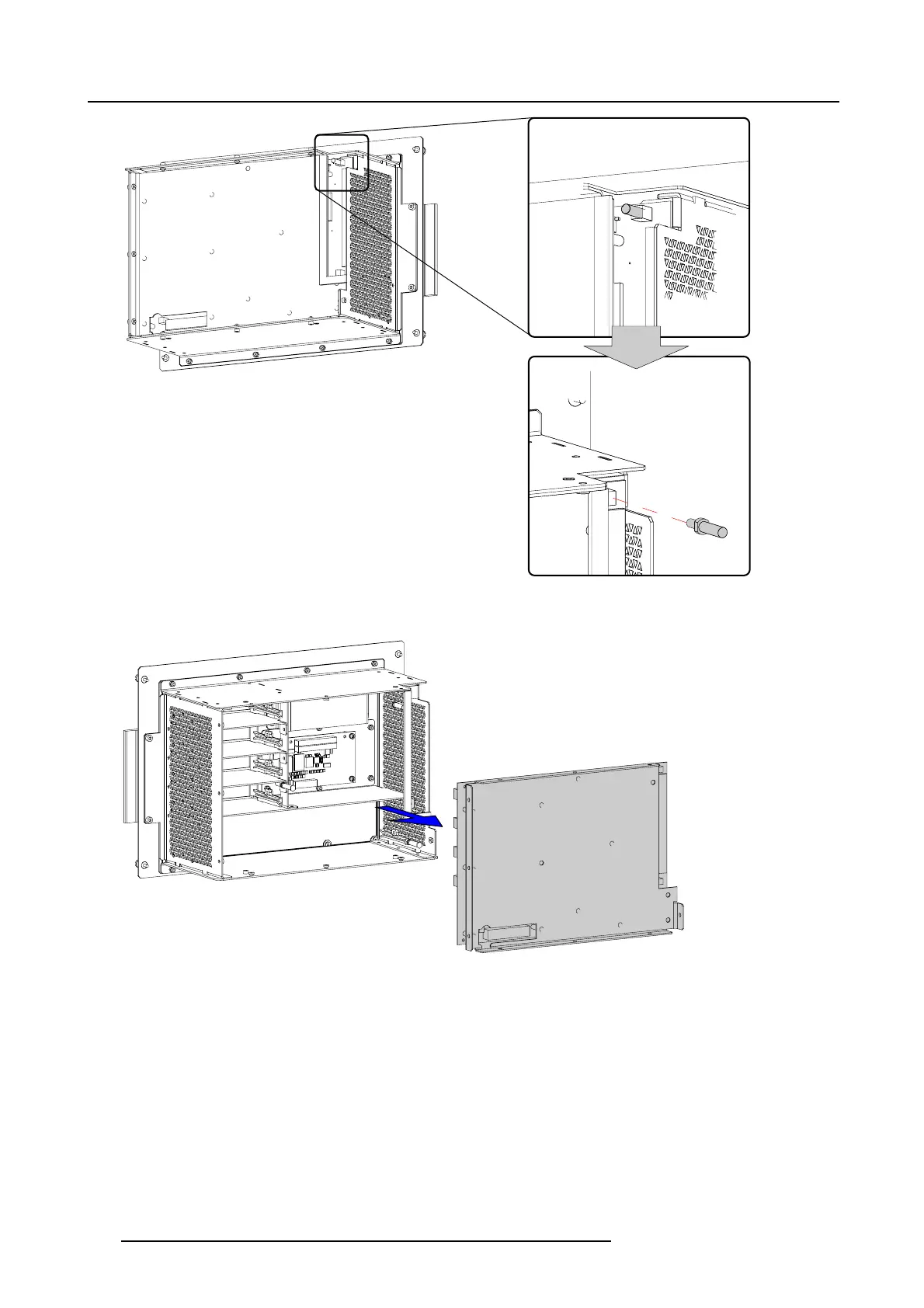

Image 21-5

Fixation pin removal

4. Pull out the PMP assembly.

Image 21-6

Assembly removal

5. Disconnect the plug and turn out the 13 indicated screws. Take off the board.

214

R59770072 FLM SERIES 19/03/2007
