22. LCD panel replacement

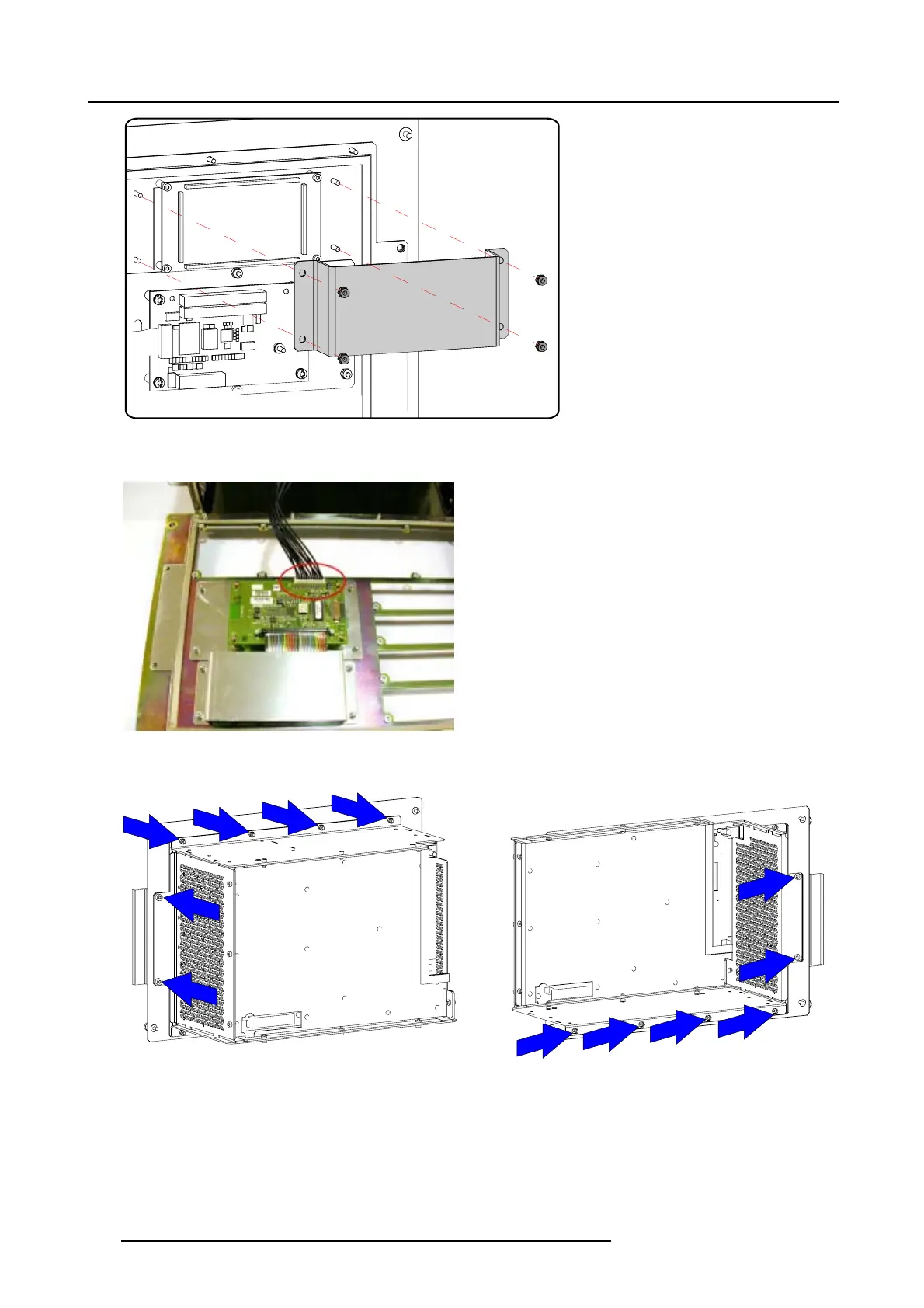

Image 22-10
LCD panel cover
4. Reestablish the connection between the PMP and the keypad unit (if it was removed)
Image 22-11
Connection PMP - keypad unit
5. Place the housing back and secure with the 8 nuts.
a
a
a
a
Image 22-12
Close housing
6. Mount the handles by tu
rninginscrewsa.
7. Reinstall the communication unit and all inputs.
224
R59770072 FLM SERIES 19/03/2007
