25. Peltier replacement

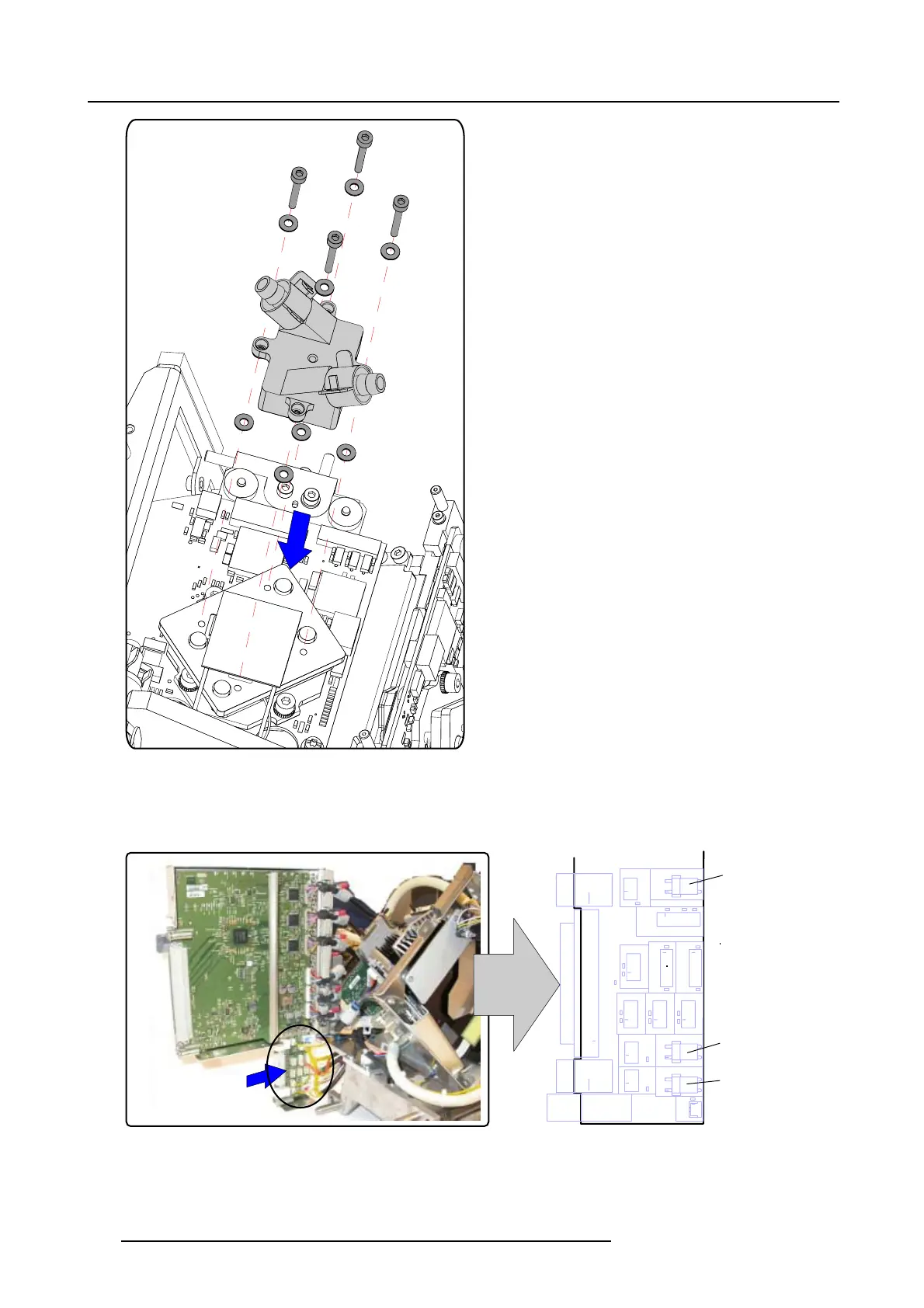

Image 25-6
Mount cooling unit
4. Put a washer on each screws and turn in the screws with a torque key set to 0.6 Nm.
5. Connect the Peltier to the FIB unit. Guide wires next to cable tree and secure with cable ties or guide the wires in the cable tree
and put the spiral back around the cable
tree.
J251
C214
C215
C204
J250
C212
J211
C211
J260
C210
C207
J291
C213
J261
J252
J263
C205
C208
J262
J271
J201
EDGE
J213
C209
J280
C203
J212
C200
C218 C216
R200
C202
J290
J270
C217
J281
J272
MH5
C206
C201
1
FAN7-4
NTC BLUE
SENSOR
LIGHT
A
BC
16
A
BC
AB
CD
WHITE
NTC GREEN
PRISM
TEC GREEN
TEC RED
FAN7-1
FAN7-2
FAN7-3
NTC RED
CATEYE (ORANGE)
(YELLOW)SHUTTER
BLUE REDGREEN
POWER BACKPLANE
TEC BLUE
1
TEC Blue
TEC Gree
TEC Red
Image 25-7
280 R59770072 FLM SERIES 19/03/2007
