25. Peltier replacement

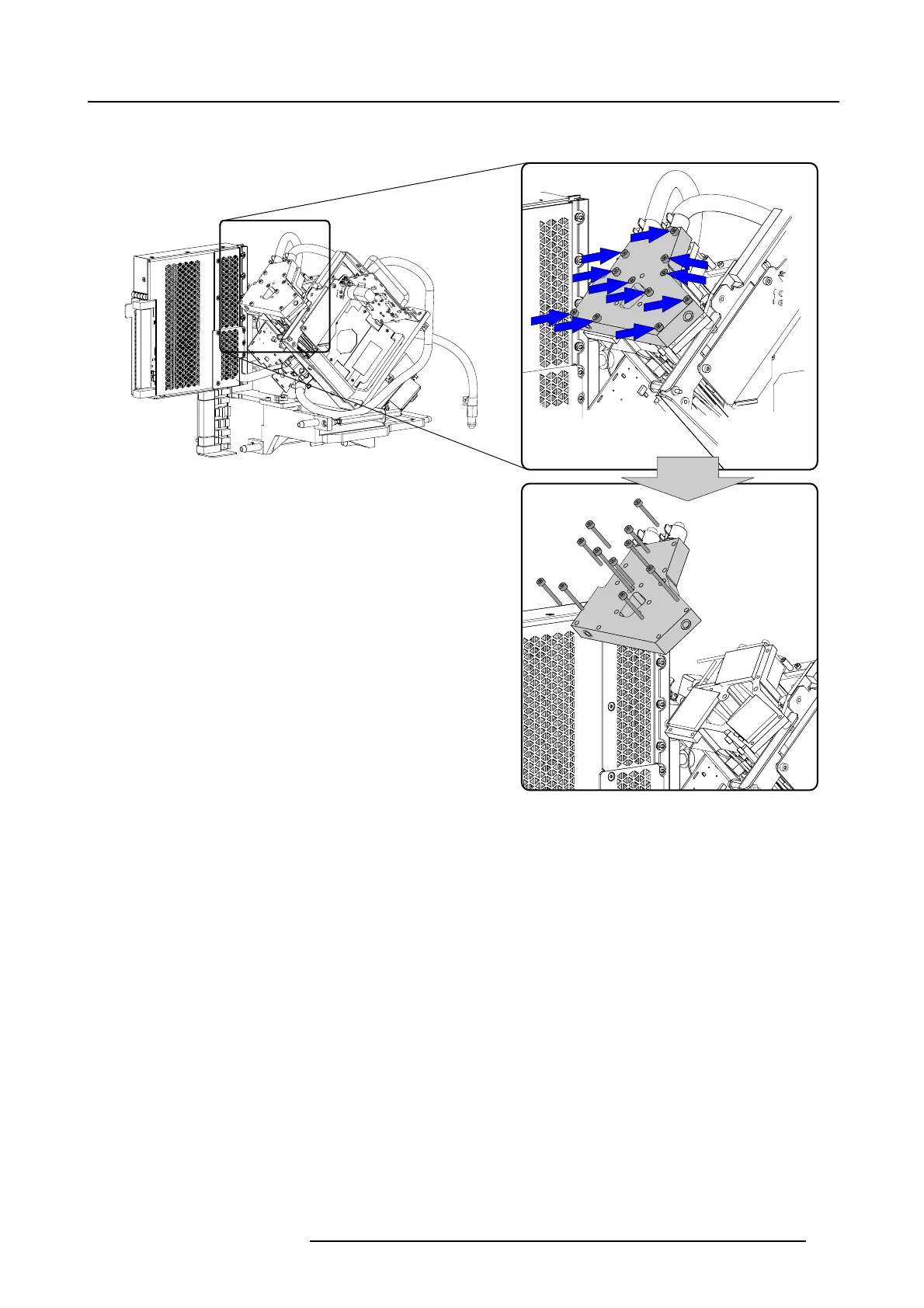

3. Turn out the indicated screws on top of the cooling block and take off this cooling block.
Note: Do not remove the hoses.
Image 25-10
Remove cooling block
4. Cut the connector of the old wires and pull the wires out of the cable tree. Then take off the Peltier element.
Or,
remove the spiral around the cable tree, take out the Peltier wires and then take off the Peltier element.
R59770072 FLM SERIES 19/03/2007
283
