27. Lamp power supply

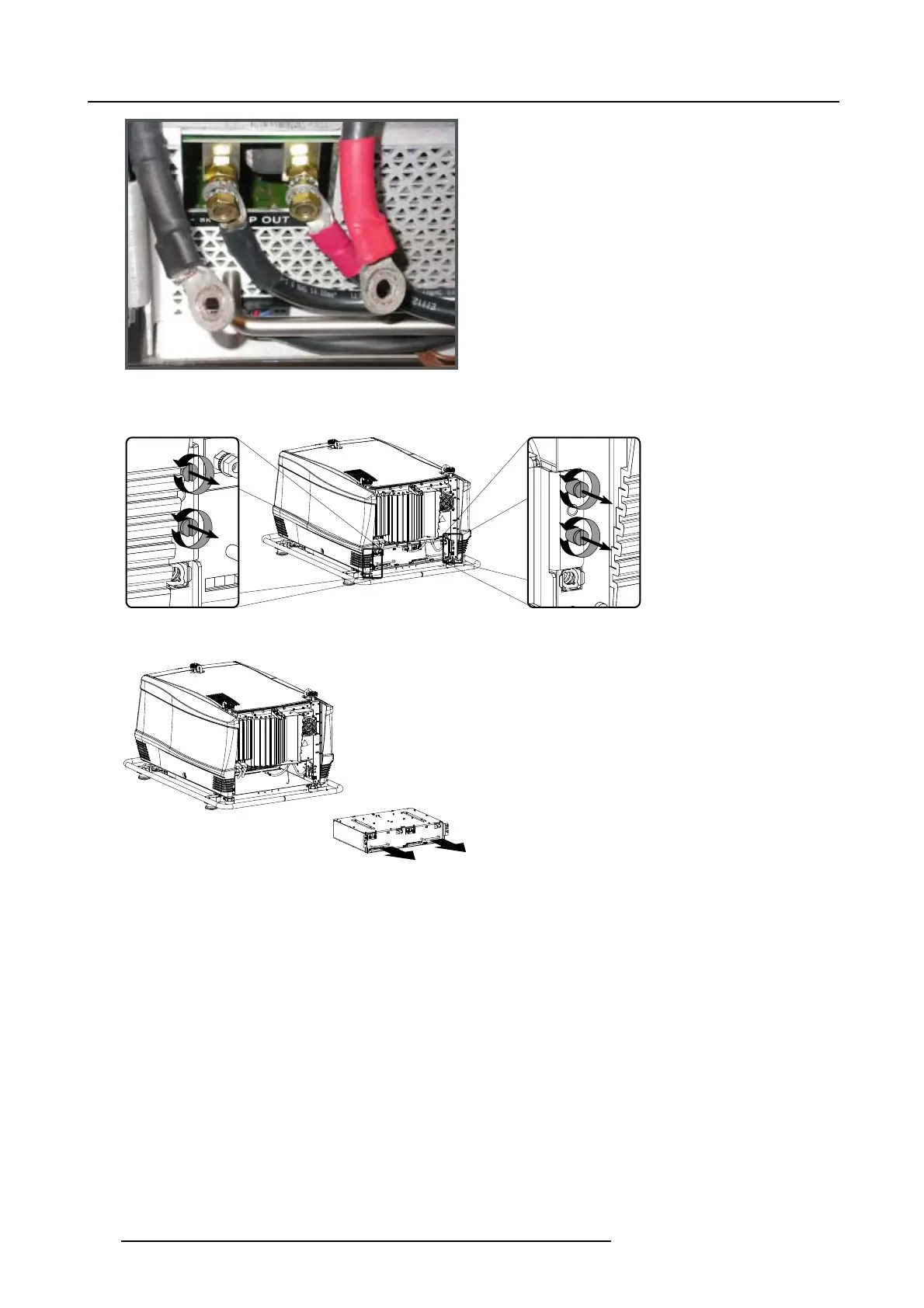

Image 27-5

5. Release the four captive screws which fasten the LPS module to the projector chassis. Use for that a flat screwdriver (6 x 10

mm).

Image 27-6

6. Hold fast the LPS module by its handles pull the LPS module out of its compartment.

Image 27-7

302 R59770072 FLM SERIES 19/03/2007
