Barco FLM series

29. Convergence adjustment

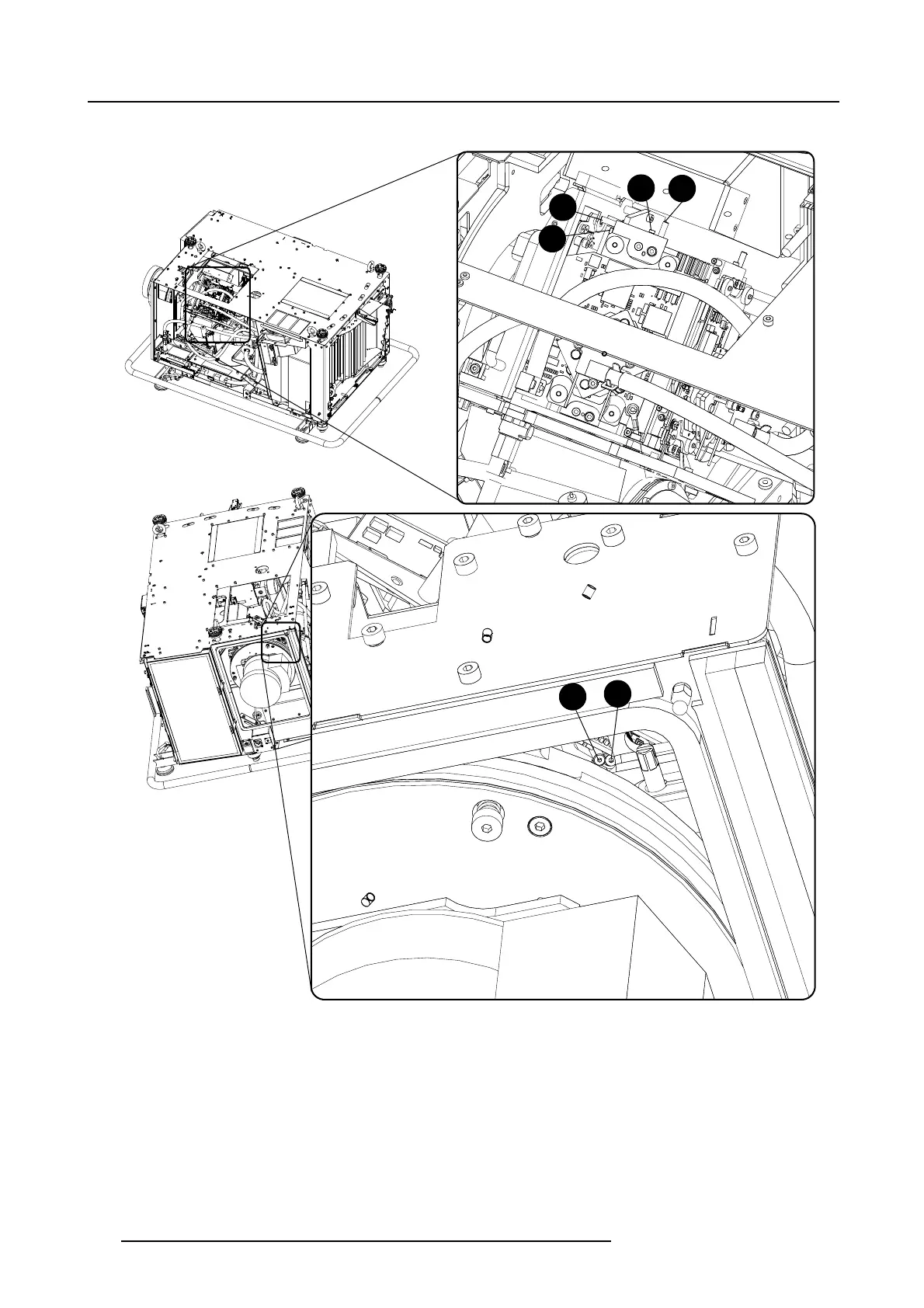

Location of the convergence adjustable screws
Ra1
Rb1
Ra2
Rb2
Ra3
Rb3
Image 29-10
Convergence screws red
Necessary tools
• 2x R847204 : steel screwdriver with 1/16” ended hex blade.
• R847205 : square dri
ve socket with soldered hexagon key of 2.5 mm
• R847203 : Steel screwdriver with 0.05” ended hex blade
•Allenkey3mm
•Allenkey2.5mm
How to re-converge
1. Put the square drive socket, with soldered hexagon key, onto a ratchet.
320
R59770072 FLM SERIES 19/03/2007
